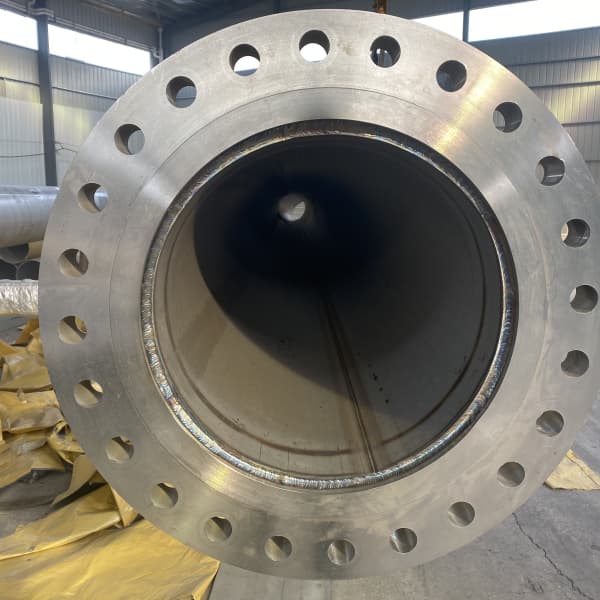

321 Pre Fabrication Of Pipe Spools
Standard: ASTM A312, ASTM A213, ASTM A269, ASTM A790
Materials: 304, 304l, 316 ,316l, 904l, 254smo, 2205, 2507
Components: Pipe, flange, elbow, reducer, tee
Service: Customized prefabrication pipe spools
321 pre fabrication of pipe spools is a titanium-stabilized austenitic stainless steel. The base composition is essentially 304 (18Cr-8Ni) with a small addition of titanium, typically 5×(C+N) minimum, which works out to roughly 0.15-0.40% Ti depending on carbon content. The titanium does one critical job: it ties up carbon as titanium carbide before chromium can form chromium carbide at grain boundaries. HT PIPE is a 321 pre fabrication of pipe spools supplier with 15+ export experience. Contact us for more information and quotes for free!
Product Forms
Bar & Rod
Plate & Sheet
Coil & Strip
Pipe & Tube
Fitting: Flange, Tee, Elbow, Reducer etc.
Forging: Ring, Shaft, Circle, Block etc.
321 vs 321H: don't mix them up
| Grade | Carbon range | Typical use |
|---|---|---|
| TP321 | 0.08% max | General elevated temperature |
| TP321H | 0.04-0.10% (controlled min) | High-temperature service per ASME Code Case |
321H has a controlled minimum carbon content to ensure elevated-temperature creep strength. The H grade is what most refinery specifications call for above 540°C. From a fabrication standpoint, 321H welds slightly differently - the higher carbon means more carbide precipitation risk if stabilization isn't effective, which puts more emphasis on proper welding parameters.
What is a Prefabricated Pipe Spool?
A pipe spool is a self-contained section of a piping system consisting of raw pipes cut to length, welded to necessary fittings like elbows, tees, reducers, and finished with flanges for bolt-up installation on-site.
Instead of welding these complex configurations high up on a construction scaffold, the entire sub-assembly is pre-engineered and built in a specialized fabrication shop. Once finished, these completed modules are shipped directly to the field for drop-in bolting.
On-Site vs. Off-Site Fabrication
Fabricating pipes in the field leaves projects vulnerable to weather delays, tight working quarters, and limited testing access. Transitioning to off-site shop prefabrication offers distinct advantages:
| Factor | On-Site Field Fabrication | Off-Site Shop Prefabrication |
| Environmental Control | Exposed to wind, humidity, and rain, risking weld porosity. | Completely enclosed, climatized shops ensuring pristine gas shielding. |
| Welding Ergonomics | Fixed-position welding, requiring difficult overhead passes. | Use of automated pipe rotators for consistent flat-position roll welding. |
| Quality Control & Testing | Transporting radiography crews or hydro-testing rigs to high scaffolds is risky and slow. | In-house NDT bays for rapid X-ray, dye penetrant, and hydrotesting. |
| Project Logistics | High labor costs, extensive scaffolding footprints, and site congestion. | Parallel processing; spools are built while civil site foundation works are poured. |
FAQ
Q: About 321 Pre Fabrication of Pipe Spools price per kg?
A: Prices ranges from $25 to $40 per kg, vary depending on size, wall thickness, supplier etc.
Q: How long does your delivery time take?
A: Delivery time is within 5-21 days
Q: Is There Sample Service?
A: Samples Are Provided Free Of Charge
Q: What Is The Minimum Order Quantity?
A: No Minimum Order Quantity
Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer and is fixed with a fumigation wooden pallet.
Q: Exported Countries
A: Brazil, South Africa, Indonesia, India, Singapore, Malaysia, Iran, Russia, UAE, Chile, Laos, etc
