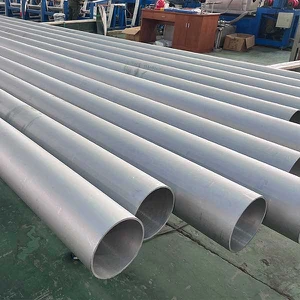

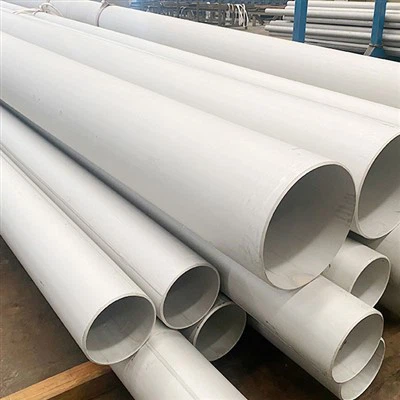

Super Duplex 2507 Pipe
1. Standard: ASTM A789, ASME SA789, ASTM A790, ASME SA790
2. Seamless OD: 4 to 219mm
3. Welded OD: 5.0 - 1219.2 mm
4. Thickness: 0.5 - 20mm
5. Grades: Dupplex 2507,UNS S32750, WNR.1.4410
Super duplex 2507 pipe mechanical properties are very high, as they perform significantly better than austenitic or ferritic types of stainless steel. Because of the high content of molybdenum, nickel and chromium, they also contain a large amount of austenite stabilizing element nitrogen. The duplex microstructural phase, with its relatively strong and durable super duplex welded tubes. However, it is undeniable that the pressure bearing capacity of Super Duplex 2507 Seamless pipe is almost 20% higher than that of welded tubes, and the cost is also higher.
Application of ASTM A790 UNS S32750 super duplex pipe:
- Oil well casing, oil and gas pipelines
- Subsea pipelines and pipeline systems for offshore platforms.
- Chemical processing equipment
- Desalination equipment
- Sewage treatment

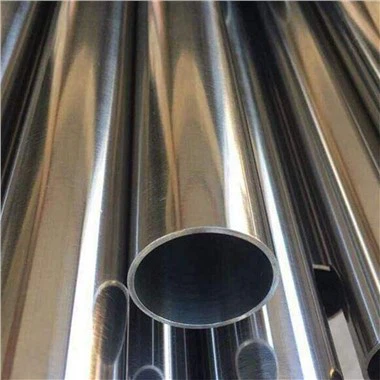

Super Duplex S32750 Steel Pipe Specifications
| Standard | ASTM A 789 / ASME SA 789 |
| ASTM A 790 / ASME SA 790 | |
| Specification | ASME, ASTM, AISI, AMS, JIS, EN, SAE, DIN, NF, TOCT, GB |
| Seamless Pipe Size | OD: 4 to 219mm |
| WT: 0.5 to 20mm | |
| Welded Pipe Size | OD: 5.0 - 1219.2 mm |
| WT | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / EFW / Welded / Fabricated |
| Length | Single Random, Double Random |
| Delivery Condition | Annealed and Pickled, Hot Finished, Polished, Bright Annealed, Cold Drawn |
| Dimensional Specification | ANSI/ ASME B36.10, B36.19 |
| Packing | Ply Wooden Boxes |
| PE Fabric Bundles | |
| Steel Strips Bundled | |
| Standard seaworthy export packing | |
| Plastic Bags, or as required |
Chemical Composition of S32750 Duplex Stainless Steel Pipe
| Elements | C | Cr | Cu | Mo | Mn | N | Ni | P | S | Si | W |
| Minimum | - | 24.0 | - | 3.00 | - | 0.24 | 6.00 | - | - | 0.20 | 0.50 |
| Maximum | 0.030 | 26.0 | 0.50 | 5.00 | 1.20 | 0.32 | 8.00 | 0.035 | 0.020 | 0.80 | 1.00 |
F53 Duplex Stainless Steel Pipe Mechanical Properties
| 0.2% Proof Stress (N/mm2 ) [ksi] minimum | 550[79.8] |
| Ultimate Tensile Strength (N/mm2) [ksi] minimum | 800 [116] |
| Elongation (%) minimum | 25 |
| hardness (HBN) | 270 max |
| Reduction of Cross Section Area (%) | 45 |
| Charpy V-notch Impact at ambient Temp (J) [ft. lb] | 80min [59min] |
| Charpy V-notch Impact at -46°C (J) [ft. lb] | 45av, 35min [33av, 25.8min] |
Super Duplex 2507 Pipe Features
- High resistance to chloride stress corrosion cracking
- High strength
- Excellent resistance to chloride pitting and crevice corrosion
- Good general corrosion resistance
- Recommended for applications up to 600° F
- High thermal conductivity, low thermal expansion
- Combination of properties imparted by austenitic and ferritic structures
- Good weldability and machinability
