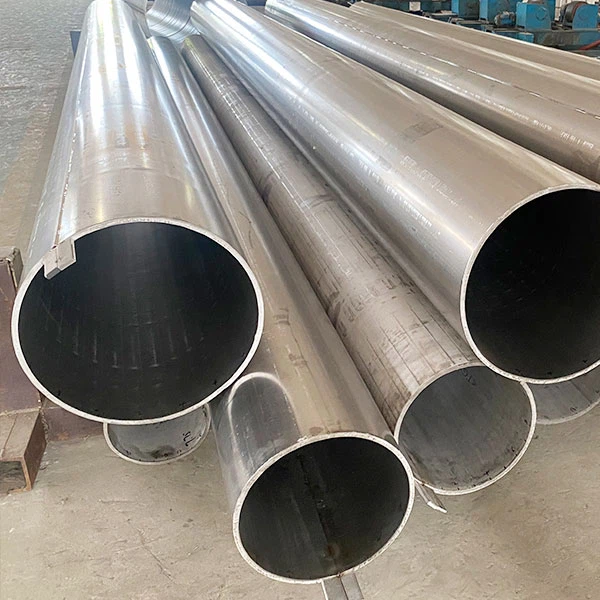

ASTM A790 UNS S32205 Pipe
1. Standard: ASTM A790 / ASME SA790
2. Size: 1/2''NB ~ 24''NB
3. Thickness: SCH5 ~ SCH XXS
4. Type: Seamless, Welded, Fabricated, ERW, LSAW
ASTM A790 UNS S32205 has excellent corrosion resistance, much higher than grade 316. Grade 2205 stainless steel has excellent resistance to stress corrosion cracking, pitting and crevice corrosion. Duplex 1.4462 resists chloride stress corrosion cracking (SCC) at temperatures up to 150°C. We are a duplex 2205 supplier with 15+ export experience, and we can provide seamless and welded pipes, from small to large diameters. Contact us for more information and free quotes!
SA 790 UNS S32205 Pipe Applications:
- Oil and Gas
- Chemical Processing and
- High Chloride Marine Environments
- Wine Tanks
- Pulp and Paper Digesters
ASTM A790 S32205 Pipe Specification:
| Standards |
ASTM A790 / ASME SA790 |
|---|---|
| Size |
½" NB – 24" NB |
| Schedule | SCH 5S – SCH XXS |
| Type | Seamless, Welded, Fabricated, ERW, LSAW Pipes |
| Length | Single Random, Double Random, and Cut Length. |
| Form | Round, Square, Rectangular, Hydraulic. |
ASME SA790 S32205 Pipe Dimensional Tolerance
| Standard | Outer Diameter(mm) | Wall Thickness(mm) | Length(mm) | ||
| range | deviation | range | deviation | deviation | |
| ASTM A790 | 10.3-48.3 | 0.4/-0.8 | 10.3-73 | -1.6 | 6 |
| 48.3-114 | ±0.8 | D≥88.9 | 6 | ||
| 114-219 | 1.6/-0.8 | T/d≤5% | -1.8 | 6 | |
| 219-457 | 2.4/-0.8 | T/d＞5% | -1.2 | 6 | |
| 457-660 | 3.2/-0.8 | D≥20 | -1.2 | 6 | |
ASTM A790 UNS S32205 Mechanical Properties
- Tensile Strength: 620 MPa (minimum)
- Yield Strength (0.2% Offset): 450 MPa (minimum)
- Elongation: 25% (minimum)
- Hardness: ≤ 290 HBW (Brinell Hardness) or ≤ 30 HRC (Rockwell Hardness)
- Modulus of Elasticity: 200 GPa
Duplex 2205 Pipe Manufacturing Process
Duplex steel UNS S32205 EFW pipe can be annealed between 1020 - 1100 degrees Celsius and rapidly cooled in air or water. If the ambient temperature rises above 300 degrees Celsius, the microstructure of UNS S32205 material will become brittle and precipitate. If the temperature is below -50 degrees Celsius, the material will undergo a transition from ductility to brittleness.
2205 Duplex Stainless Steel Suppliers Service
Pipe products in the ASTM A790 standard must meet various specified requirements, including size, appearance, chemical composition, mechanical properties, etc. Our suppliers will process them through heat treatment, cold drawing, welding, machining, laser cutting and other processes in accordance with the standard requirements before shipping to customers.
FAQ
Q: Would you provide samples for free?
Q: What Is The Minimum Order Quantity?
Q: About ASTM A790 UNS S32205 pipe price per kg?
Q: How long does your delivery time take?
Q: Can I visit your Factory?
Q: Does the product have quality inspection?
Q: ow many coutries you already exported ?
