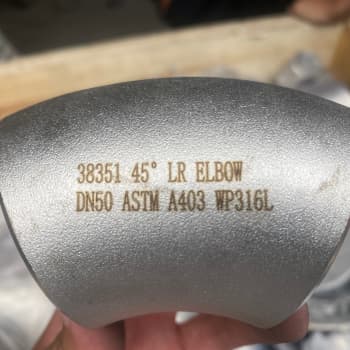

316L stainless steel pipe elbows are critical connecting components used to change the direction of pipes in piping systems. They are manufactured from 316L stainless steel using a specialized processing technique. Bend angles are typically available in standard specifications, such as 45°, 90°, and 180°, but custom angles can also be customized to meet project requirements. HT PIPE supply all different types and scales of pipe fittings. Please feel free to contact us for further product information and pricing.
316L stainless steel pipe Cold Bend Forming
Press Bending: A large hydraulic press and die are used to press the pipe into the die cavity to form the elbow. This is suitable for applications with thicker walls and larger bend radii.
Push Bending: A dedicated pusher machine uses a mandrel and a heated (or unheated) device to push the pipe through the die, causing it to plastically deform and bend into shape. The finished product has a smooth inner wall and low fluid resistance.
ss316l Hot Bend Forming
316L stainless steel pipe elbows is heated to a specific high temperature (typically 1050°C - 1150°C) to increase its plasticity before being bent.
316L Buttweld Pipe Fittings Welded Elbows
Welded together from multiple stamped 316L stainless steel fan-shaped pipe sections.
316L stainless steel Pipe Bend Specifications
| Product Name | CL600 900 1500 3000 stainless steel SS304/304L 316/316L ASME ANSI BS DN 15-500 bends |
| Material | stainless steel 304/304L 316/316L |
| Color | polishing color/black |
| Standard | DIN GB ISO JIS BA ANSI |
| Pressure | 150-3000lbs |
| Coating | black paint |
| Packing | wooden case |
| Size | 1/2"-72" |
SS 316L Pipe bend Chemical Composition
|
Element |
SS 316 ( %) | SS 316L ( %) |
|---|---|---|
| (Cr) | 16.0 - 18.0 | 16.0 - 18.0 |
| (Ni) | 10.0 - 14.0 | 10.0 - 14.0 |
| (Mo) | 2.0 - 3.0 | 2.0 - 3.0 |
| (C) | 0.08 max | 0.03 max |
| (Mn) | 2.0 max | 2.0 max |
| (Si) | 1.0 max | 1.0 max |
| (P) | 0.045 max | 0.045 max |
| (S) | 0.03 max | 0.03 max |
| (N) | 0.10 max | 0.10 max |
| (Fe) | Balance | Balance |
SS 316L Pipe Bend Maintenance
Regularly inspect the piping system, especially the exterior of the elbows and weld areas for signs of corrosion. When cleaning, use a dedicated stainless steel cleaning agent. Do not use cleaning agents containing chloride ions, such as hydrochloric acid, to avoid pitting corrosion.
Keep the 316L stainless steel pipe elbows surface clean and dry to prevent the prolonged adhesion of foreign matter such as iron powder and dust, which can damage the passivation film and cause localized corrosion.
Application of SA 403 WP 316L Pipe Fittings
Oil and gas: submarine pipelines, downhole tools for acid gas wells.
Chemical equipment: sulfuric acid reactors, phosphoric acid evaporators, pickling equipment.
Nuclear industry: containers and pipelines for nuclear waste treatment systems.
Marine engineering: seawater desalination devices, heat exchangers.
Environmental protection: key components of flue gas desulfurization (FGD) systems.
