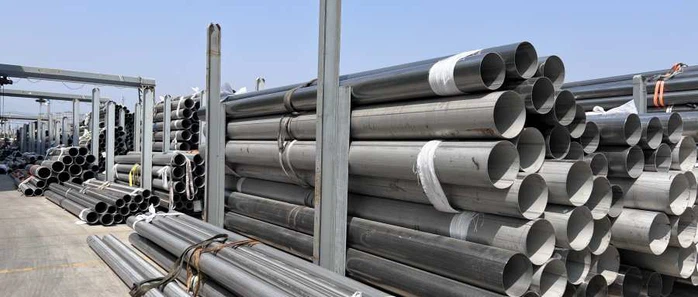

ASME SB 622 ASTM B622 UNS N06200 Seamless Pipe Suppliers
ASTM B622 UNS N06200 seamless pipes are made from Hastelloy C2000 material, which is able to handle both oxidizing and reducing conditions. Suitable for use in industries with frequent exposure to acids, chlorides and high temperatures.
Hastelloy C2000 Price
- 2.4675 Hastelloy C2000 prices can range from $50 to $60 per kg
- Hastelloy C2000 prices typically vary based on factors such as quantity, supplier, market conditions and the specific form purchased (plate, sheet, pipe, etc.).
ASTM B622 UNS N06200 Seamless Pipe Sizes & Supply Range
Zhengzhou Huitong Pipeline Equipment Co., Ltd. offers precision cold-drawn and hot-finished seamless pipes tailored to demanding project specifications:
Outer Diameter (OD) Range: 1/4" NB to 8" NB (Nominal Bore)
Wall Thickness / Schedule: Schedule 5S, 10S, 40S, 80S, up to Schedule 160 / XXS (Conforming to ASME B36.19 / ASME B36.10).
Length Configurations: Single Random Length (SRL), Double Random Length (DRL), or Custom Cut-to-Length up to 12 meters.
Finishes / Conditions: Solution Annealed, Pickled, Bright Annealed, or Precision Ground.
Key Features of 2.4675 Hastelloy C2000 (UNS N06200)
Composition:
- Nickel (Ni): 56–63%
- Chromium (Cr): 20–23%
- Molybdenum (Mo): 4–5%
- Copper (Cu): 1–3%
- Iron (Fe): 3–6%
- Tungsten (W): 3.0% (max)
- Manganese (Mn): 1.0% (max)
- Silicon (Si): 0.5% (max)
- Carbon (C): 0.15% (max)
- Phosphorus (P): 0.015% (max)
- Sulfur (S): 0.015% (max)
Features of Alloy C2000 Seamless Pipe
Corrosion Resistance:
- Sulfuric acid (moderate concentrations and temperatures)
- Phosphoric acid
- Hydrochloric acid and other chloride-containing solutions
- Acetic acid
- Seawater, for its resistance to chloride-induced stress corrosion cracking (SCC)
ASTM B622 UNS N06200 High Temperature Resistance:
Hastelloy C2000 tube can operate in high temperature environments up to approximately 870°C (1600°F).
Hastelloy Alloy C2000 UNS N06200 Mechanical Properties:
- Tensile Strength: 70-100 ksi (480–690 MPa)
- Yield Strength: 35-60 ksi (240–415 MPa)
- Elongation: 30% (minimum)
- Hardness: Rockwell B 85-95
Critical Applications for Hastelloy C-2000 Piping
Sulfuric Acid Environments: Outstanding resistance across highly concentrated sulfuric acid lines, even when contaminated with iron or chloride ions.
Chemical Process Reactors: Used in reactors, heat exchangers, and column internals handling volatile mixtures of reducing and oxidizing chemicals.
Pharmaceutical Manufacture: Prevents batch contamination due to its exceptionally low uniform corrosion rate in organic and inorganic acids.
Pulp and Paper Bleaching: Resists aggressive chlorine dioxide and hypochlorite processing solutions.
HT PIPE is a well-known stockist and exporter. We are a Alloy c2000 material supplier with 15+ export experience. We not only provide pipes, plates, round bars, but also pipe fittings, flanges, etc. Contact us for more information and prices for free.
