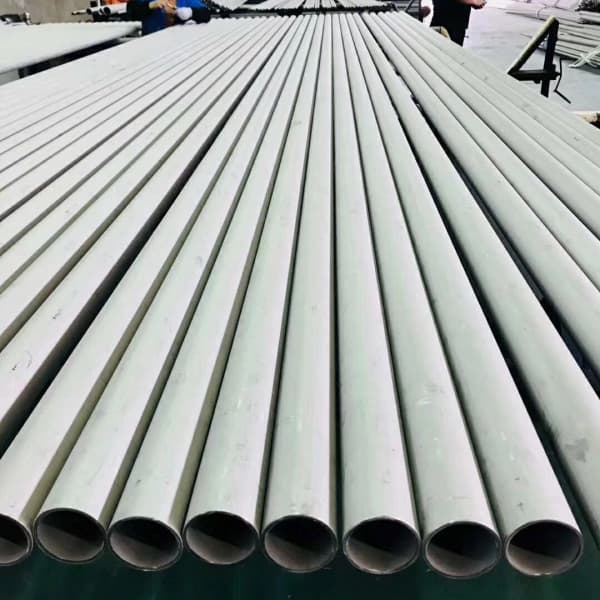

ASTM A790 Duplex 31803 Pipe

Unlike traditional 300-series stainless steels, which are purely austenitic, or 400-series options, which are purely ferritic, UNS S31803 splits the difference. It maintains an approximate 50:50 ratio of austenite and ferrite.

• Yield Strength Amplification: The ferritic component allows S31803 pipes to deliver a minimum yield strength of 450 MPa ($65\text{ ksi}$). This is roughly double the yield strength of common austenitic alloys like 316L. Engineers can utilize this added strength to spec thinner wall profiles, significantly lowering overall structure weight without sacrificing safety margins.

• Stress Corrosion Cracking (SCC) Immunity: Standard austenitic steels regularly fail due to localized chloride-induced stress corrosion cracking in hot, saline environments. The ferritic network within S31803 disrupts these fracture propagation paths, making the pipe highly resistant to mechanical failure in harsh chloride zones.

Product Forms

Bar & Rod

Plate & Sheet

Coil & Strip

Pipe & Tube

Fitting: Flange, Tee, Elbow, Reducer etc.

Forging: Ring, Shaft, Circle, Block etc.

Contact now

Manufacturing Controls: Seamless vs. Welded

Choosing between a seamless or welded ASTM A790 UNS S31803 pipe depends heavily on your system's pressure dynamics and fluid composition.

Seamless S31803 Pipes

Manufactured through hot extrusion or cold drawing of solid billets, seamless options contain no weld seams or heat-affected zones (HAZ).

Best For: Ultra-high-pressure hydraulic systems, gas processing lines, and critical chemical handling where zero geometric anomalies are required.

Advantage: Eliminates any risk of localized phase imbalance or alloy segregation that can occasionally occur during welding field procedures.

Welded & EFW S31803 Pipes

Produced from formed steel strip or plate, these are joined using automated gas tungsten arc welding (GTAW) or plasma arc welding (PAW) processes, often governed by standard ASTM A928 specifications.

Best For: Large-diameter cross-country water transport, structural marine pilings, and low-pressure pulp bleaching systems.

Advantage: Offers highly uniform wall thickness profiles across broad structural footprints, providing a cost-effective alternative for larger piping dimensions.

ASTM A790 UNS S31803 Pipe Specifications

Technical Specifications: S31803 vs. S32205

Many field operators ask about the practical differences between the older UNS S31803 designation and the newer UNS S32205 grade.

Originally, the S31803 chemistry specification was written with broad compositional limits. To maximize corrosion performance, modern mills eventually restricted production to the upper end of the S31803 window-specifically targeting higher levels of chromium, molybdenum, and nitrogen.

This high-performance variation was subsequently standardized as UNS S32205.

Today, most modern material stock carries dual certification as both S31803 and S32205, fulfilling the structural and chemical criteria of both standards simultaneously.

ASTM A790 Duplex 31803 Pipe Pressure Rating
