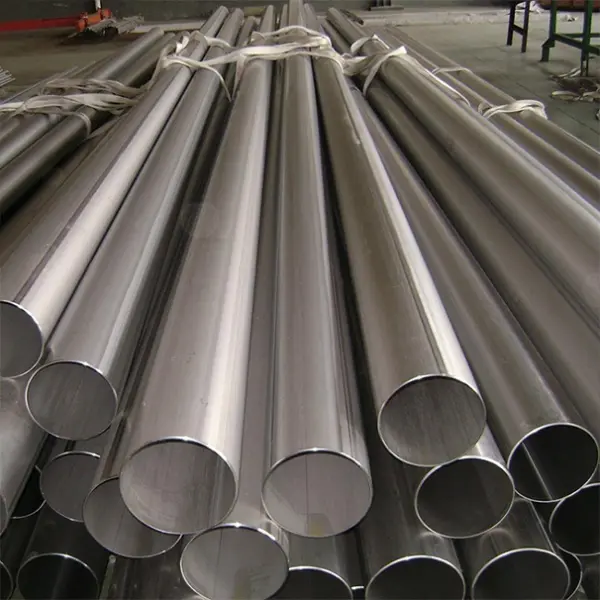

254 SMO Pipes

254 SMO pipes (UNS S31254 / DIN 1.4547). This super-austenitic stainless steel is engineered specifically to withstand aggressive halide media and heavy mechanical stress. 254 SMO alters the formula by introducing massive doses of Molybdenum and Nitrogen. HT PIPE is a 254 smo stainless steel Pipe supplier with 15+ export experience. Contact us for more information and quotes for free!

Core Chemical Composition Breakdown

The performance of 254 SMO stems from this exact element matrix:

Chromium (19.5% – 20.5%): Establishes the foundational, self-healing passive oxide film on the pipe's surface.

Nickel (17.5% – 18.5%): Stabilizes the austenitic crystal structure, giving the metal incredible impact strength and ductility from sub-zero temperatures up to high heat cycles.

Molybdenum (6.0% – 6.5%): The primary shield against pitting and crevice corrosion. It is this "6-moly" classification that makes it incredibly robust in saltwater.

Nitrogen (0.18% – 0.22%): Acts as a powerful interstitial strengthener, nearly doubling the yield strength of standard austenitic grades while boosting pitting resistance.

Low Carbon ($\le$ 0.020%): Minimizes the risk of carbide precipitation at the grain boundaries during welding, preventing intergranular corrosion.



Seamless vs. Welded 254 SMO Pipes

When designing a piping configuration, specifying the correct manufacturing method dictates the system's longevity under pressure.

254 SMO Seamless Pipes (ASTM A312 / A213)

Manufacturing: Extruded and cold-drawn directly from solid billets, eliminating any structural seams.

Best Used For: High-pressure hydraulic lines, instrumentation setups, and critical offshore subsea connections.

Advantage: Eliminates the risk of weld-seam anomalies, offering absolute uniformity across the pipe wall.



254 SMO Welded Pipes (ASTM A312 / A358)

Manufacturing: Formed from flat-rolled plate and automatically welded along the longitudinal seam.

Best Used For: Large-diameter exhaust cleaning systems, chemical transfer lines, and wastewater drainage systems.

Advantage: Highly cost-effective for large diameters (above 8 inches) where manufacturing seamless alternatives becomes prohibitively expensive.



Commercial Specifications & Procurement Sizing

Procurement managers should specify exact ASTM and ASME standards when sourcing material to ensure it stands up to rigorous third-party inspections.

• Dimensional Standards: ASME B36.19 and ASME B36.10.
• Sizing Schedules: Ranging from light-wall SCH 5S and SCH 10S for weight-sensitive setups, up to heavy-duty SCH 40S, SCH 80S, and SCH 160 for high-pressure loops.
• Size Spectrum: Available from 1/2" NB up to 12" NB for standard seamless variants, and up to 48" for specialized welded architectures.
• Surface Delivery Finishes: Solution Annealed & Pickled (AP) or Bright Annealed (BA). Proper pickling or bright annealing is essential to restore the passive oxide layer after thermal fabrication.



Real-World Failure Mitigation: 254 SMO vs. Competitors

To justify the upfront investment of a 6-moly system, it helps to compare it directly to common alternatives in a live process stream:

vs. 316L Stainless Steel: 316L fails quickly via stress corrosion cracking in environments with temperatures above 60°C containing high concentrations of chloride. 254 SMO handles these thermal chloride loops seamlessly.



vs. Duplex 2205: Duplex steels offer excellent strength, but they become brittle at low temperatures and lose stability when exposed to continuous heat above 300°C. 254 SMO preserves its impact toughness across both cryogenic and high-temperature environments.



vs. Nickel Alloys (Alloy 625 / C276): While nickel alloys offer slightly higher limits in extreme chemical scenarios, 254 SMO delivers 90% of the required performance in high-chloride settings at a fraction of the raw material cost.
