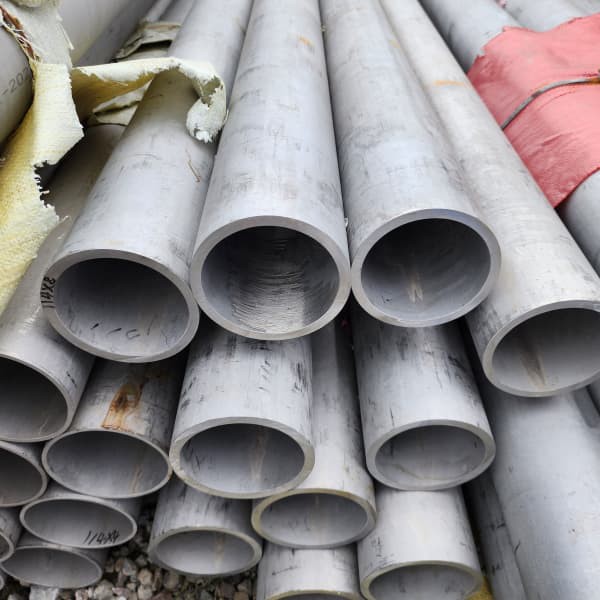

Hastelloy Alloy C22 Tube

1. Standard: ASTM B622, ASTM B619, ASTM B474
2. OD Sizes: 1/2” – 48”
3. Thickness: SCH5~SCHXXS
4. End: Beveled End, Plain End
5. Grades: Hastelloy c22, UNS N06022, EN 2.4602

Send Inquiry

Product Introduction

Hastelloy alloy C22 is a versatile nickel-chromium-molybdenum-tungsten alloy. While it may look identical to other stainless or nickel tubes on a rack, its chemical is engineered for extreme environments. HT PIPE is a alloy c22 tubing supplier with 15+ export experience. Contact us for more information and quotes for free!

We offers Hastelloy C22 in a variety of forms, including:

Bar
Wire
Sheet
Plate
Forgings
Pipe fittings
Flanges
Seamless & Welded pipe
Seamless Tube & Welded tube
Weld Rod

ASTM B622 UNS N06022 Pipe Specifications

Specification	ASTM B619/ ASME SB 619, ASTM B622 / ASME SB 622
Standard	SUS, JIS, AISI, ASTM, GB, DIN, EN
Shapes	Hastelloy UNS N06022 Round, Rectangular, Square, Hydraulic, Straight, "U" Shape, Coiled, Honed Tubes, Pan Cake Coils
Manufacturing Type	Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X-Ray Welded
Thickness Range	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS
Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Size	1/2" – 48"
Delivery Condition	Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF
Value Added Services	Cutting
	Beveling
	Threading
	Draw & Expansion as per the required Size & Length
	Ultrasonic Testing
	Annealed & Pickled Bending
	Destructive and Non Destructive
END	Plain End, Beveled End, Treaded

Contact now

Superior Passivity and Protection

Research indicates that C22 maintains a lower passive current density than C-276. This is primarily due to its higher Chromium (Cr) content, which facilitates the growth of a dense, highly protective oxide barrier at the alloy-oxide interface. In layman's terms: it heals itself faster and holds its "shield" better than almost any other commercial alloy.

Resistance to the "Silent Killers"

In environments containing hydrogen sulfide or high-temperature molten salts, standard steel fails rapidly due to pitting and stress-corrosion cracking. C22 tubing is one of the rare materials capable of forming chemically impervious surfaces that resist these "silent killers" of industrial piping.

Technical Comparison: C22 vs. The Field

Alloy Grade	Corrosion Resistance Rank	Primary Advantage
Alloy 625	Baseline	High strength, moderate corrosion resistance.
C-276	Industrial Standard	High Molybdenum; great for reducing acids.
C-22	Premium Choice	High Cr + Mo; superior in oxidizing/reducing cycles (Jakupi et al., n.d.).
