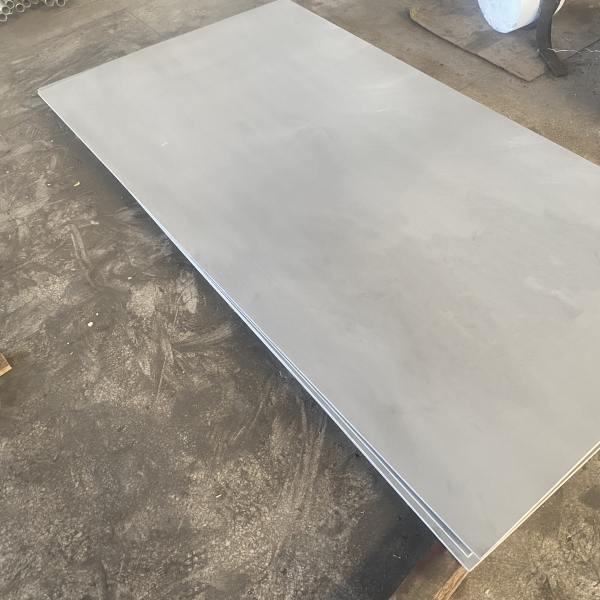

ASTM B333 UNS N10665 Plate

ASTM B333 UNS N10665 Plate exceptional resistance to sulfuric acid, hydrochloric acid, and other aggressive chemicals make it a preferred choice for equipment such as heat exchangers, reactors, and storage tanks. Hastelloy 2.4617 high nickel content imparts superior strength and durability, ensuring longevity even in the most challenging conditions. Furthermore, the addition of molybdenum enhances its resistance to pitting and crevice corrosion, while chromium provides stability and resistance to oxidation.



ASTM B333 N10665 Sheet Standards and Specifications

Specification	Cold rolled: 1219mm * 2438mm (4′ x 8′), 1219mm * 3048mm (4′ x 10′), 1220mm * 2440mm, 1250mm * 2500mm or as your requirement. Hot rolled: 1500mm * 2000mm, 1000mm * 3000mm, 1500mm * 4000mm, 1500m * 6000mm or as your requiremnt.
Technique	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Etc.
Surface	2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching
Thickness	0.25-200mm, 0.3mm to 120mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm
Package	Standard Export Seaworthy Package, or as required.
Value Added Services	Cladding,Heat Treatment,Annealed, Pickling, Polish,Rolling,Cutting,Bending,Forging,Minor Fabrication Etc.
MTC	Mill Test Certificate, Available as per EN 10204 3.1



2.4617 Hastelloy Cold Rolling Sheet Mechanical Properties

Properties	Metric	Imperial
Tensile strength	914 MPa	133000 psi
Yield strength (@strain 0.200%)	396 MPa	57400 psi
Elastic modulus	217 GPa	31500 ksi
Elongation at break (in 50.8 mm)	55%	55%
Hardness, Brinell (converted from Rockwell B hardness)	168	168
Hardness, Knoop (converted from Rockwell B hardness)	186	186
Hardness, Rockwell B	98	98
Hardness, Vickers (converted from Rockwell B hardness)	241	241



Introduction to ASTM B333 Standard:
ASTM B333 serves as the cornerstone for quality assurance in the production of nickel-molybdenum-chromium alloys, including N10665.



ASTM B333 / ASME SB 333 Plate Test Certificates

• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc.



ASTM B333 UNS N10665 Plate Sheet Strip Value Added Services

• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
