Every steel pipe line expands when it heats up. A 100-meter carbon steel line raised from 20 C to 150 C grows roughly 156 millimeters - and if that growth has nowhere to go, the pipe will buckle, the flanges will overstress, or the equipment nozzles will be dragged out of position. Thermal expansion is the quiet reason piping systems have loops, expansion joints and pipe supports, and it is one of the few calculations a piping buyer can and should do on paper before ordering.
Product Forms
Bar & Rod
Plate & Sheet
Coil & Strip

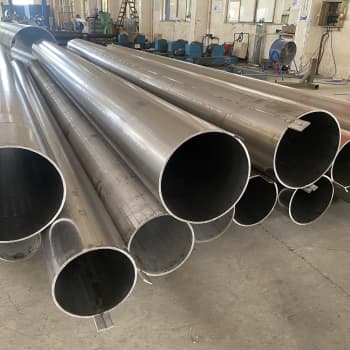

Pipe & Tube
Fitting: Flange, Tee, Elbow, Reducer etc.
Forging: Ring, Shaft, Circle, Block etc.
The Expansion Formula
The linear thermal expansion of a pipe is calculated as:
Expansion (mm) = L x alpha x delta-T
where L is the original length in meters, alpha is the coefficient of thermal expansion of the material (mm per meter per degree C), and delta-T is the temperature change in degrees C. The coefficient is the material property that varies with grade: austenitic stainless steels expand about 50% more than carbon steel, which is exactly why a stainless line needs more expansion accommodation than a carbon line at the same temperature.
Typical Coefficients of Expansion
| Material | Mean alpha 20-100 C (x10-6 / C) | Expansion per 100 m per 100 C |
| Carbon steel | ~11.7 | ~117 mm |
| Type 304 / 316 stainless | ~16.5 - 17.3 | ~165 - 173 mm |
| Duplex 2205 | ~13.5 | ~135 mm |
| Inconel 625 | ~12.8 | ~128 mm |
The austenitic stainless value is the one to remember: roughly 17 x 10-6 per degree C, versus about 12 for carbon steel. This is why a 100-meter stainless line at a 100-degree rise grows about 50 mm more than a carbon line of the same length - a difference big enough to matter in the expansion loop design.
Worked Example: A Stainless Process Line
Take a 316L line, 60 meters long, installed at 20 C and operating at 120 C. The temperature change is 100 C. Using alpha = 16.5 x 10-6 / C:
Expansion = 60 m x 16.5 x 10-6 / C x 100 C = 0.099 m = 99 mm.
That 99 mm has to be absorbed by the piping arrangement - a loop, a bellows, or a natural bend. If the line were anchored rigidly at both ends, the thermal load would create stresses that, on a stiff 316L line, can exceed the yield strength. The expansion number is the starting point for every decision in the layout.
Why Austenitic Stainless Grows More
The face-centered cubic (FCC) lattice of austenitic stainless is more open than the body-centered cubic (BCC) lattice of carbon steel, and the atoms move further apart as temperature rises. That is a metallurgical constant - you cannot change it by heat treatment.
It means every stainless or nickel-alloy line with a large delta-T needs proportionally more room to move. The coefficient also changes slightly with temperature; for precise work engineers use the mean coefficient over the actual operating range from the material data sheet rather than the room-temperature value.
What the Design Options Are
- Expansion loops: the classic U-shaped bend in the line, sized so the natural flex absorbs the growth.
- Expansion joints (bellows): flexible metal bellows installed where space is too tight for a loop.
- Pipe bends and routing: using the natural flexibility of bends in the layout to absorb movement.
- Anchors and guides: anchor points fix the line at defined locations so the expansion is channeled to the flex points, not into equipment nozzles.
- Pre-stress / cold spring: installing the line cut slightly short so it is pre-loaded against the future expansion.
The Mistakes That Show Up on Site
- Treating a stainless line like a carbon line: using the carbon steel expansion coefficient in the calculation under-sizes the loop by about 50 mm per 100 m per 100 C.
- Anchoring both ends of a hot line with no flex point, then watching the flanges leak on first heat-up.
- Using delta-T based on the operating temperature minus ambient, but forgetting the line was installed in winter - the actual rise can be bigger.
- Putting an expansion joint in a line with poor guides, so the bellows sees shear instead of pure axial movement.
How to Use the Number in Ordering
When you order pipe for a hot service, the expansion calculation does not change the pipe itself - the grade and wall are decided by pressure and corrosion - but it decides the layout, the supports and the expansion hardware.
A buyer who knows the delta-T and the alpha can size the loop or order the right expansion joint with the correct axial travel in one step, instead of discovering on site that the bellows has half the travel the line needs. Specify the operating and installation temperatures on the inquiry, and the supplier will confirm the material coefficient from the standard data sheet.
