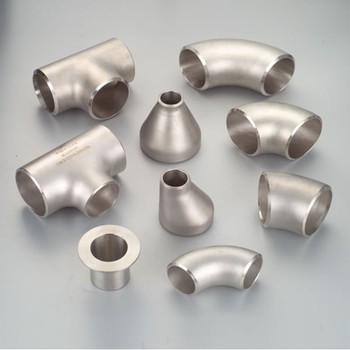

ASME B16.9 Butt-Weld Fittings
ASME B16.9 is the standard for butt-weld fittings and covers various types and sizes of butt-weld fittings used for connection and reduction in piping systems. These fittings include elbows, tees, reducers, caps, etc. Overall dimensions, tolerances, ratings, testing, and marking for sizes NPS 1⁄2 to NPS 48 (DN 15 to DN 1200).
The term "wrought" means fittings made from seamless or welded pipe, tubing, plate, or forgings. Our company is a professional and reliable one-stop service manufacturers suppliers exporters. We not only provide stainless steel, nickel alloy pipes, tubes, plates, sheets, round bar, but also fabricated pipe spools service, of course, including pipe fittings, flanges, fasteners, etc.
ASME B16.9 Pipe Fitting Types
Long Radius (LR) & Short Radius (SR) Elbows: Available in 45-degree, 90-degree, and 180-degree variations to safely alter fluid flow directions with minimal pressure loss.
Equal & Reducing Tees: Used to create a clean 90-degree branch split or combine flow channels from pipes of identical or reduced diameters.
Concentric & Eccentric Reducers: Facilitate smooth transitions between differing pipeline diameters while keeping centerlines aligned (concentric) or flat on one side (eccentric) to prevent air pockets.
Piping Caps & Stub Ends: Domed caps provide robust, permanent terminal seals, while lap-joint stub ends allow for quick-disassembly flange connections.
| Parameter | Sizing and Manufacturing Capabilities |
| Size Range (NPS) | 1/2" to 48" Nominal Pipe Size (DN15 to DN1200) |
| Wall Thickness Schedules | SCH 5S, 10S, 20, 40S, STD, 80S, XS, 160, XXS |
| Common Carbon Steel Grades | ASTM A234 WPB, WPC, WPL6 (Low Temperature) |
| Common Stainless Steel Grades | ASTM A403 WP304, WP304L, WP316, WP316L, WP317L |
| Common Alloy & Nickel Grades | ASTM A234 WP11/WP22, Inconel, Monel, Hastelloy, Duplex |
| Manufacturing Processes | Mandrel Method, Hot Pressing, Forging, Cold Extrusion |
ASME B16.9 fittings Applicable Materials
ANSI B16.9 standard applies to butt-weld pipe fittings made of a variety of materials, including but not limited to:
Carbon steel, Stainless steel, Alloy steel, Nickel alloy
| Materials-Standards for ASME B16.9 Fittings | |
|---|---|
| ASTM Standards | Material Specification |
| A234 | Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service |
| A403 | Wrought Austenitic Stainless Steel Piping Fittings |
| A420 | Wrought Carbon Steel and Alloy Steel for Low Temperature Service |
| A815 | Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings |
| A361 | Wrought Aluminum and Aluminum Alloy Welding Fittings |
| A363 | Seamless and Welded Unalloyed Titanium and Titanium Alloy Welding Fittings |
| A366 | Wrought Nickel and Nickel Alloy Fittings |
Buttweld Pipe Fittings Applications
- Oil and gas: Pipe systems for transporting crude oil, natural gas and refined oil.
- Chemical and pharmaceutical: Pipe systems for transporting corrosive chemicals and high-purity liquids.
- Power and energy: Steam and cooling systems for power plants and nuclear power plants.
- Food and beverage: Pipe systems for transporting food-grade liquids and gases.
Rigid Testing & Quality Certification Compliance
Every shipment leaving our factory undergoes comprehensive verification protocols to ensure complete compliance with global project requirements:
Structural Verification: In accordance with ASME B16.9 guidelines, our component designs are verified by prototype design proof tests. Fittings are engineered to safely withstand the full computed burst pressure rating of an equivalent seamless pipe of matching size and schedule.
Dimensional & Tolerance Checks: Exacting checks are completed on face-to-center dimensions, angularity, and outer diameter tolerances to minimize on-site weld fit-up times.
Material Traceability: All shipments are accompanied by EN 10204 3.1 Mill Test Certificates (MTC), chemical breakdown reports, mechanical testing sheets, and NACE MR0175/ISO 15156 certifications where applicable.
