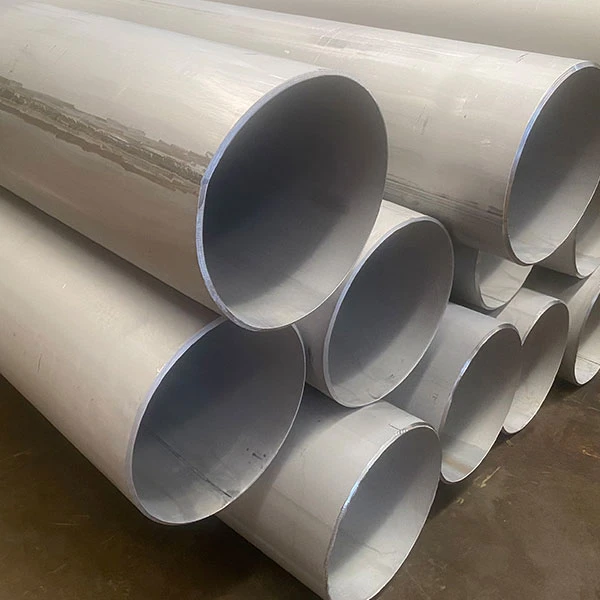

Nickel 200 Pipe Tube

1. Standard: ASTM B161, ASTM B163, ASTM B474
2. OD Sizes: 1/2” - 48”
3. Thickness: SCH5~SCHXXS
4. Type: Welded / ERW / EFW / SAW

Send Inquiry

Product Introduction

Nickel 200 Pipe Tube is also known as commercially pure nickel and low alloy nickel. Alloy 200 is 99.6% pure wrought nickel. Nickel 200 tube has many beneficial qualities, including excellent corrosion resistance, good mechanical properties, and high thermal and electrical conductivity. Typical applications for ASTM B161 UNS N02200 seamless tube include various processing equipment, especially maintaining product purity when handling food, synthetic fibers, and alkalis. We are a Nickel 200 seamless tube supplier with 15+ export experience, Contact Us for more information and free quotes!

Alloy 200 Pipe and Tube Standard

ASTM B161 Standard Specification for Nickel Seamless Pipe and Tube

ASTM B474 Standard Specification for Electric Fusion Welded Nickel and Nickel Alloy Pipe

ASTM B163 Standard Specification for Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes

Nickel 200 Pipe Material Specification

ASTM Specification	ASTM B161 ASME SB161, ASME SB-163
Standard	DIN, ASME, EN, JIS, GB, AISI, NF, DS, SAE, DTD, ASTM, AMS, TOCT,
Size of Seamless Pipe	Wall thickness.: 0.05- 20 milimeter, 4 - 219 milimeter
Size of Welded Pipe	5.0 to 1219.02 milimeter
size of EFW Pipe	5.0 to 1219.02 milimeter
Seamless Tube Size	3.35 milimeter To 101.6 milimeter OD
Welded Tube Size	6.35 milimeter To 152 milimeter OD
Tubing wall thickness	0.020" –0.220", (custom wall thicknesses available)
Pipe Schedule	SCH160, SCH40S, SCH30, SCH120, SCH20, SCH80, SCH60, SCH5, SCH10S, SCH40, SCH80, XXS, XS, SCH10, STD
Length	Standard & Cut length , Single Random, Double Random Pipe
Finish	AP (Annealed & Pickled), BA (Bright & Annealed), NO.1, 2B, Polished, MF, HL, NO.4, Mirror finish, BA, 8K etc
End	Plain End, Beveled End, Treaded Pipe, Screwed ends
Type	Seamless / ERW / EFW / Welded / Fabricated
Marking	Heat No. (Or as per need.), Thickness, OD, Grade, Standard Length
Value Added Service	Expansion and Draw as per needed Length and Size, , Polish (Comilimeterercial and Electro), Machining, Annealed & Pickled Bending Etc.
Specialize in	Large Diameter
Technique	Cold drawn, hot drawn, bright annealed, solid solution, hot extruding

WERKSTOFF NR. 2.4066 Pipe and Tube Chemical Structure

Grade	C	Mn	Ni	Cr	S	Fe	Si	Cu
Nickel 200	0.015 maximum	0.035 maximum	99.00 minimum	–	0.001 maximum	0.040 maximum	0.035 maximum	0.025 maximum

Nickel 200 Tube Yield Strength

Element	Density	Yield Strength (0.2%Offset)	Elongation	Melting Point	Tensile Strength
Nickel 200	8.9 gram/centimeter3	MPa – 148, Psi – 21500	45 %	(2635 °F) 1446 °C	MPa – 462, Psi – 67000
