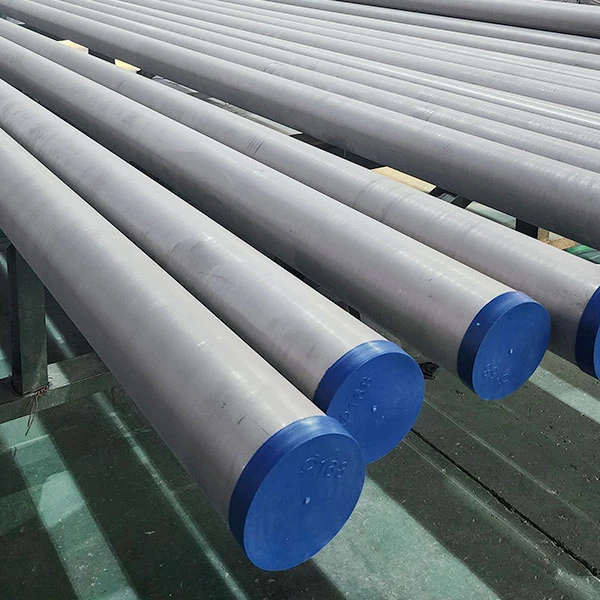

316Ti Stainless Steel Pipe

316Ti Stainless Steel Pipe


1. Standard: ASTM A312、ASTM A213、ASTM A269
2. Size: 3mm - 500mm
3. Thickness: 0.40 mm - 12.70 mm
4. Thickness: Up to 30 meters, Custom Cut Lengths
5. Grades：AISI 316Ti, UNS S31635, EN 1.4547
Send Inquiry
Product Introduction

Alloy 316Ti is a derivative of 316 grade stainless steel. 316Ti stainless steel pipes are stabilized with the addition of titanium to improve its resistance to high temperature and intergranular corrosion. Chromium grain boundary precipitates start to form between temperatures of 900 °F to about 1500 °F, making it more resistant to sensitization than 304. It also has excellent resistance to acids, alkalis, and oxidation. Mechanical tests such as transverse or longitudinal tensile tests and flattening tests are performed on ASTM A312 TP316ti by our suppliers.



ASTM A312 316Ti stainless pipe standard:

  • ASTM A312: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes



  • Available forms for 316Ti: Our 316Ti steel pipe suppliers not only provide stainless steel 316Ti pipe but also 316Ti Stainless Steel Fittings, Flanges, Forgings, Fasteners, Pipes, Tubes, Plates, Sheets, Strips, Coils, Bars, Round Rods, Etc.



  • Other Grades: 304, 304L, 316, 316L, 316Ti, 316L Mod, 17-4ph, 310, 310S, 317, 317L, 321, 321H, 347, 347H, 904L, 254SMO, 253MA, S32550, S32205, S31803, 2507, S31050, S30815, Etc.
316L stainless steel pipe tube suppliers



316Ti Stainless Steel Pipes in Seamless / Welded / ERW / EFW forms manufactured in China

Stainless Steel 316ti Pipe Specifications

Specifications ASTM A312 / ASTM SA312, ASTM A269 / ASTM SA269, ASTM A213 / ASTM SA213
Outer Diameter 3.00 mm - 500 mm
Wall Thickness 0.40 mm - 12.70 mm
Schedules 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length Upto 30 meters, Custom Cut Lengths
Types Round, Square, Rectangle, Coil, "U" Shape, Hydraulic & Honed Tubes



ASTM A312 UNS S31635 Stainless Steel Pipe Chemical Composition

SS 316TI
Ni 10 - 14
N 0.10 max
Cr 16 – 18
C 0.08 max
Si 0.75 max
Mn 2 max
P 0.045 max
S 0.030 max
Mo 2.00 - 3.00



SS 316Ti Pipe Mechanical Properties

Grade 316TI
Tensile Strength (MPa) min 515
Yield Strength 0.2% Proof (MPa) min 205
Elongation (% in 50mm) min 35
Hardness Rockwell B (HR B) max 75
Brinell (HB) max 205



316Ti Stainless Steel Pipe Physical Properties

Specific Heat (0-100°C) Thermal Conductivity Thermal Expansion Modulus Elasticity Electrical Resistivity Density
500 14.6 16.5 193 7.4 7.99
J.kg-1.°K-1 W.m -1.°K-1 mm/m/°C GPa μohm/cm g/cm3



AISI 316Ti Manufacturing and Standards:

  • 316Ti stainless steel is manufactured as per various international standards such as ASTM A312, ASTM A358, ASTM A269, and ASTM A213.
  • Common forms include seamless pipes, welded pipes, and tubing.



SUS 316Ti Steel Pipe Applications:

  • Chemical Processing
  • Petrochemical Industry
  • Heat Exchangers
  • Oil & Gas



SS 316Ti Vs 316L

The addition of titanium to 316Ti has the following advantages over 316L: 316Ti is designed for high-temperature applications and 316Ti stainless steel is more resistant to sensitization and intergranular corrosion at high temperatures.

Contact now

DIN 1.4571 Stainless Steel Pipe Size

NPS OD Sch5S Sch10S Sch40S Sch80S Sch160S
in mm in mm in mm in mm in mm in mm
1/8 0.405 10.3 - - 0.049 1.24 0.068 1.73 0.095 2.41 0.124 3.15
1/4 0.54 13.7 - - 0.065 1.65 0.088 2.24 0.119 3.02 0.145 3.68
3/8 0.675 17.1 - - 0.065 1.65 0.091 2.31 0.126 3.2 0.158 4.01
1/2 0.84 21.3 0.065 1.65 0.083 2.11 0.109 2.77 0.147 3.73 0.188 4.78
3/4 1.05 26.7 0.065 1.65 0.083 2.11 0.113 2.87 0.154 3.91 0.219 5.56
1 1.315 33.4 0.065 1.65 0.109 2.77 0.133 3.38 0.179 4.55 0.250 6.35
1 1/4 1.66 42.2 0.065 1.65 0.109 2.77 0.140 3.56 0.191 4.85 0.250 6.35
1 1/2 1.9 48.3 0.065 1.65 0.109 2.77 0.145 3.68 0.2 5.08 0.281 7.14
2 2.375 60.3 0.065 1.65 0.109 2.77 0.154 3.91 0.218 5.54 0.344 8.74
2 1/2 2.875 73 0.083 2.11 0.12 3.05 0.203 5.16 0.276 7.01 0.375 9.52
3 3.5 88.9 0.083 2.11 0.12 3.05 0.216 5.49 0.3 7.62 0.438 11.13
3 1/2 4 101.6 0.083 2.11 0.12 3.05 0.226 5.74 0.318 8.08 - -
4 4.5 114.3 0.083 2.11 0.12 3.05 0.237 6.02 0.337 8.56 0.531 13.49
5 5.563 141.3 0.109 2.77 0.13 3.4 0.258 6.55 0.375 9.52 0.625 15.88
6 6.625 168.3 0.109 2.77 0.13 3.4 0.280 7.11 0.432 10.97 0.719 18.26
8 8.625 219.1 0.109 2.77 0.148 3.76 0.322 8.18 0.5 12.7 - -
10 10.75 273.1 0.134 3.4 0.165 4.19 0.365 9.27 0.5 12.7 - -
12 12.75 323.9 0.156 3.96 0.18 4.57 0.375 9.52 0.5 12.7 - -
14 14 355.6 0.156 3.96 0.188 4.78 0.375 9.52 0.5 12.7 - -
16 16 406.4 0.165 4.19 0.188 4.78 0.375 9.52 0.5 12.7 - -
18 18 457 0.165 4.19 0.188 4.78 0.375 9.52 0.5 12.7 - -
20 20 508 0.188 4.78 0.218 5.54 0.375 9.52 0.5 12.7 - -



FAQ

Q: About 316Ti stainless pipe price per kg?

A: Prices from ranges $3 to $9 per kilogram, vary depending on size, wall thickness, supplier etc.

Q: How long does your delivery time take?

A: Delivery time is within 5-21 days

Q: Is There Sample Service?

A: Samples Are Provided Free Of Charge

Q: What Is The Minimum Order Quantity?

A: No Minimum Order Quantity

Q: How to pack the products?

A: The inner layer has a waterproof paper outer layer and is fixed with a fumigation wooden pallet.

Q: Exported Countries

A: Brazil, South Africa, Indonesia, India, Singapore, Malaysia, Iran, Russia, UAE, Chile, Laos, etc
