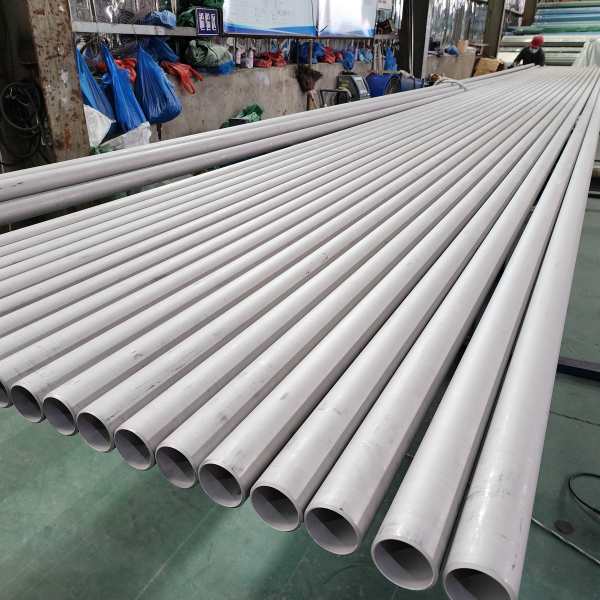

SS 310 Pipe
1. Standard: ASTM A312, ASME SA312, ASTM A213, ASTM A269
2. Size: 1/2''~48''
3. Thickness: 5S, 10S, 40S, 80S, 160S
4. Equivalent：UNS S31000, WNR.1.4841, AISI 310
SS 310 pipe is made of chromium-nickel alloy and have the same strength as 304 grade pipes but have higher corrosion and oxidation resistance. Grade 310 stainless steel pipes can work at high temperatures and can operate up to 1035 degrees Celsius in intermittent services. HT PIPE is one of the leading Stainless Steel 310 Pipe manufacturers and we produce these pipes in different types and sizes. These pipes are produced in Seamless, Welded, Resistance Welded, Fabricated, LSAW, and Electrofusion Welded conditions.
Characteristics of Stainless Steel 310 Seamless Pipe:
- Strength and toughness at cryogenic temperatures
- Moderate strength at high temperature
- Resistance to hot corrosion
- Oxidation resistance to 2000°F
ASTM A312 TP310 Seamless Pipe Specification
| Size | 1/8″ NB TO 30″ NB IN |
| Specialized in | Large Diameter Size |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Specifications | ASTM A 312 ASME SA 312 |
| Dimensions | ASTM, ASME and API |
| SS 304 Pipes | 1/2″ NB – 16″ NB |
| ERW 304 Pipes | 1/2″ NB – 24″ NB |
| EFW 304 Pipes | 6″ NB – 100″ NB |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
Chemical Composition of SS ERW 310 Pipes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| AISI 310/S31000/1.4841 | min. | – | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.25 | 2.0 | 1.50 | 0.045 | 0.030 | 26.0 | 22.0 | – | ||
Mechanical & Physical Properties of SS 310 Pipe
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
SS 310 Seamless Pipe Pressure Rating
| Pipe O.D. (in.) |
Wall Thickness of Pipe/Tube (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | 0.095 | 0.109 | 0.120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Heat Treatment Of Alloy 310 Pipes and Tubes
- 1000-1150°c followed by rapid quenching
Welding 310 Stainless Steel Pipes
- MAG welding solid wire
- TIG welding
- Arc welding (E)
- Laser beam welding
FAQ
Q: About SS 310 pipe price per kg?
Q: How long does your delivery time take?
Q: Is There Sample Service?
Q: What Is The Minimum Order Quantity?
Q: SS 310 seamless pipe certification?
Q: Exported Countries
