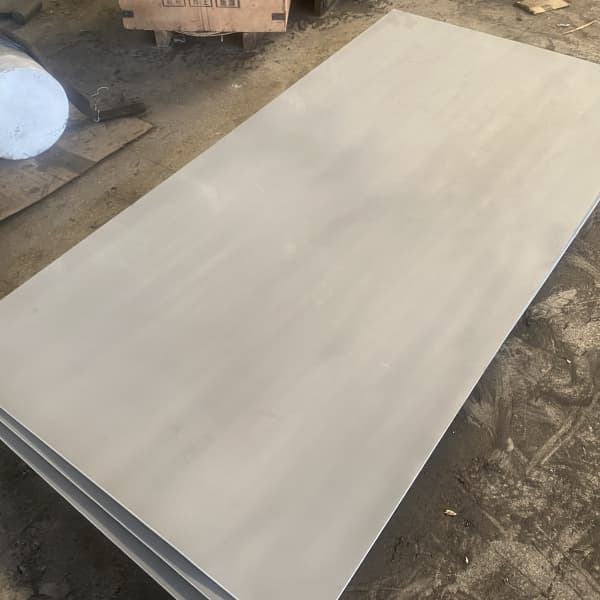

Inconel Steel 600 Sheet

HT PIPE is a inconel 600 sheet supplier with 15+ export experience. Contact us for more information and quotes for free!

The performance profile of Inconel Steel 600 Sheet is an intentional consequence of its atomic structure. A standard composition breakdown reveals why this solid-solution strengthened alloy maintains predictable mechanical properties from cryogenic ranges up to elevated operational environments.

Product Forms

• Bar & Rod
• Plate & Sheet
• Coil & Strip
• Pipe & Tube
• Fitting: Flange, Tee, Elbow, Reducer etc.
• Forging: Ring, Shaft, Circle, Block etc.

Key Material Specification Compliance

Engineering compliance requires strict adherence to international standardizations. High-quality Inconel 600 plate and sheet products are typically manufactured and certified under the following rigorous industrial protocols:

ASTM B168 / ASME SB 168: The baseline standard for hot-rolled and cold-rolled nickel-chromium-iron alloy plate, sheet, and strip.

SAE / AMS 5540: The critical aerospace material specification governing structural sheet, strip, and plate requirements.

DIN 17750 & ISO 6208: European and international dimensional and metallurgical conformity pathways for industrial trade.

Contact now

Thermal Integrity and Creep Resistance

Corrosion Dynamics in Industrial Environments

Selecting an Inconel 600 plate involves matching its chemistry against specific chemical threats. Its dual-element dominance (Nickel + Chromium) creates a versatile barrier across two distinct chemical landscapes:

Reducing vs. Oxidizing Environments

In reducing media-where oxygen is scarce and acids donate hydrogen ions-the high nickel content prevents the metal from dissolving. It displays excellent resistance to organic acids (such as fatty acid processing), caustic alkalies, and dry halogens (chlorine and fluorine gases).

Conversely, in highly oxidizing solutions like nitric acid concentrations, the chromium content steps in to build a protective barrier. While it is not recommended for strongly oxidizing hot acids due to potential localized attack, it provides an exceptional operational balance in mixed-gas environments containing both oxygen and reducing gases.

Nitriding Atmosphere Resistance

A standout characteristic of Alloy 600 is its performance within high-temperature nitriding environments. In furnaces where ammonia is cracked to infuse nitrogen into component surfaces, standard steel components quickly absorb nitrogen, forming brittle iron nitrides. Inconel 600 completely resists nitrogen absorption up to high thermal ranges, ensuring a significantly longer service life for furnace hardware, baskets, and retorts.

Cold and Hot Forming Parameters

Hot Working: Structural forging or heavy forming of thick plate sections should occur within the 1600°F to 2250°F (870°C to 1230°C) window. Critical Guardrail: Avoid any structural mechanical work between 1200°F and 1600°F (649°C to 871°C), as the alloy exhibits a localized low-ductility zone within this range where tearing can occur.

Cold Forming: The material mimics the behavior of standard heavy-gauge austenitic stainless steels during cold rolling or bending but demands higher machine power due to a rapid work-hardening rate.
