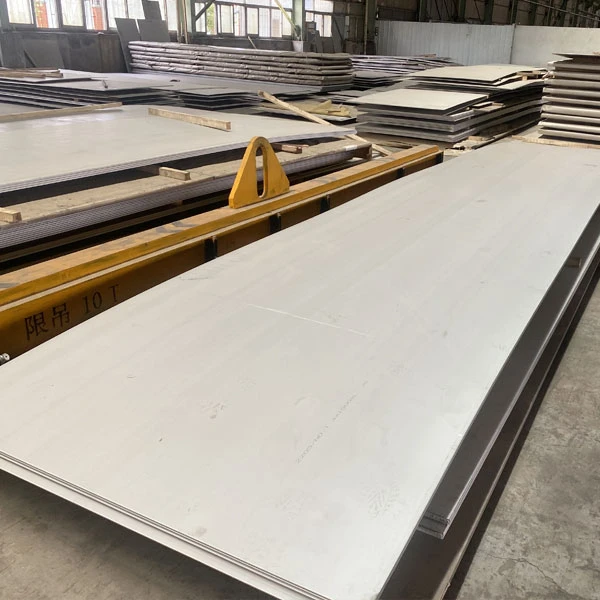

Inconel 600 Plate
1. Standard: ASTM B168, ASME SB168
2. Width: 10~2500mm or as per your requirements
3. Length: 0~12m or as per your requirements
4. Thickness: 0.1~ 100mm or as per your requirements
One of the key properties of Inconel 600 plate is its ability to withstand high temperatures. It maintains its strength and ductility even when exposed to temperatures up to 2000°F (1093°C). Nickel Alloy 2.4816 is the first choice for applications that require extreme high temperatures, such as heat exchangers and furnace components. Another advantage of Inconel alloy 600 plate is its corrosion resistance. N06600 material performs well in both oxidizing and reducing environments, making it suitable for chemical processing and marine applications. We are a Inconel steel plate supplier with 15+ export experience. Contact us for more information and free quotes!
ASTM B168 UNS N06600 Plate Sheet standard:
- ASTM B168 Standard Specification for Nickel-Chromium-Iron Alloys (UNS N06600, N06601, N06603, N06690, N06693, N06025, N06045, and N06696), Nickel-Chromium-Cobalt-Molybdenum Alloy (UNS N06617), and Nickel-Iron-Chromium-Tungsten Alloy (UNS N06674) Plate, Sheet
- Suppliers: We also offer Inconel 600 wire, bar, sheet, pipe, tube, fittings, flanges, forgings, and welding rods.
Inconel 600 Plate Sheet Specifications
| Specification | ASTM B168 / ASME SB 168, AMS 5540, AMS 5665 |
| Dimensions | Cold rolled 0.5-6.4 mm |
| Hot rolled 3.0–10.0 mm | |
| Thickness | 0.1 to 100 mm Thk |
| Width | 10-2500mm |
| Length | 2m, 2.44m, 3m, or as required |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| Form | Plate, Coils, Sheet, Strip, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
Nickel Inconel 600 Plate Chemical Composition
| Ni | Cr | Fe | Mn | C | Cu | Si | S |
| ≥72.0 | 14.0-17.0 | 6.0-10.0 | ≤1.0 | ≤0.15 | ≤0.50 | ≤0.50 | ≤0.015 |
Alloy 600 Plate Mechanical Properties
| Grade | Density | Melting Range | Tensile Stress | Yield Stress (0.2%Offset) | Elongation |
| Alloy 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40% |
ASME SB168 UNS N06600 Applications:
- Distillers, Muffle Furnaces
- Aviation Field
- Engine and Airframe Components
- Jet Engines
- Oil and Gas
- Heat Processors
- Chemical Industry
About US:
Zhengzhou Huitong Pipeline Equipment Co., LTD. is a professional and reliable one-stop service manufacturers suppliers exporters. We not only provide pipes, tubes, plate, sheets, round bar, but also fabricated pipe spools service, of course, including pipe fittings, flanges, fasteners, etc. Free samples can be provided. Contact us for a free quote.
FAQ
Q: About Inconel 600 plate prices?
Q: How long does your delivery time take?
Q: Is There Sample Service?
Q: What Is The Minimum Order Quantity?
Q: How to pack the products?
Q: Exported Countries
