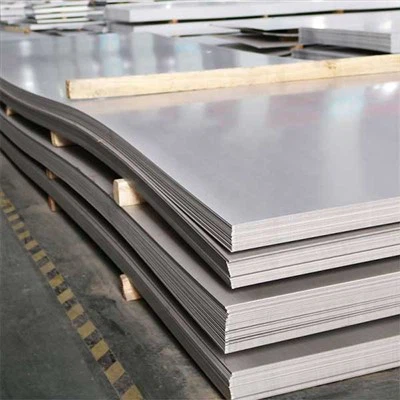

304h 2mm Thick Stainless Steel Sheet

1.Standard: ASTM A240 / ASME SA240
2.Thickness: 0.1mm-200mm
3.Width: 800-3000mm
4.Length: 1000-6000mm

Send Inquiry

Product Introduction

304h 2mm thick stainless steel sheet has excellent stability and corrosion resistance in high temperature environments. The addition of carbon element enables it to maintain good mechanical properties at high temperatures. The chromium content of UNS S30409 stainless steel remains at 18-20% and the nickel content increases to 8-11%, alloy 304H plate also contains a small amount of carbon (C) content, which is usually controlled within the range of 0.04-0.1%. This trace amount of carbon content helps improve the high temperature resistance of 304H.

Application Areas 304h 2mm Thick Stainless Steel Sheet:

Petrochemical industry: SUS 304H
Power plants
Stove manufacturing
Food processing industry

Specification Of ASME SA240 Gr 304h Plate

Standard	ASTM A240
Thickness	1.0mm to 100mm
Width	1000mm to 2000mm
Dimensions	ASME, ASTM and API
Finish	2B, BA NO(8), Cold rolled sheet (CR), SATIN , 2D, HR plate
Surface types	etching, hair line, NO.1, sand blast, embossed, Brush, 2D, 2B, BA, NO.8, checkered, NO.4, 8K, mirror, etc
Technique	Cold Rolled and Hot Rolled
Specialize	Perforated Sheet, Shim Sheet, B. Q. Profile.

Mechanical Properties of ASTM A240 UNS S30409 Sheet

DESCRIPTION	TYPE 304H
Proof Stress 0.2% (MPa)	205
Tensile strength (MPa)	515
Elongation A5 (%)	40
Hardness	HB: 201 HRB: 92

Common Ss 304h Plate Thicknesses:

The thickness of 304H steel plate can be customized according to specific needs, with common thicknesses ranging from 0.5mm to 50mm. Common specifications include 2mm, 3mm, 5mm, 10mm, etc. The specific thickness selection depends on the application field and the required strength requirements.
