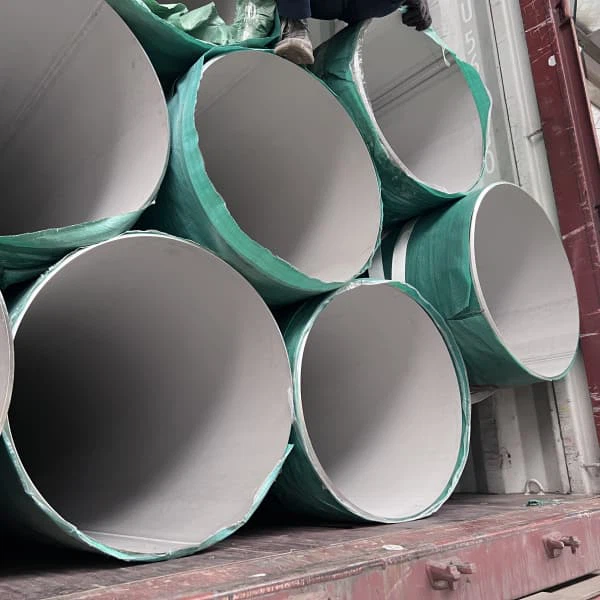

Stainless Steel 2507 Pipe

1. Standard: ASTM A789, ASME SA789, ASTM A790, ASME SA790
2. Seamless OD: 4 to 219mm
3. Welded OD: 5.0 - 1219.2 mm
4. Thickness: 0.5 - 20mm
5. Grades: Dupplex 2507,UNS S32750, WNR.1.4410

Send Inquiry

Product Introduction

Stainless steel 2507 pipe serves as a high-performance duplex stainless steel product, widely used in harsh industrial environments. Because it has excellent corrosion resistance, mechanical properties and structural stability. Our manufacturers can produce super duplex 2507 seamless and welded pipes to meet industry requirements. Contact us market@htpipe.com for more information and a free quote!

We offers Stainless steel 2507 in a variety of forms, including

Bar
Wire
Sheet
Plate
Forgings
Pipe fittings
Flanges
Seamless & Welded pipe
Seamless Tube & Welded tube
Weld Rod

1.4410 aisi standard

Standard	ASTM A 789/ASME SA 789 ASTM A 790/ASME SA 790
Specification	ASME, ASTM, AISI, AMS, JIS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB
Seamless Pipe Size	OD: 4 to 219mm
Seamless Pipe Size	WT: 0.5 to 20mm
Welded Pipe Size	OD: 5.0 - 1219.2 mm
WT	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type	Seamless / ERW / EFW/ Welded / Fabricated
Length	Single Random, Double Random, Customized
Dimensional Specification	ANSI/ ASME B36.10, B36.19

Contact now

Chemical Composition of Stainless Steel 2507 Pipe

Chromium (Cr): 24.0-26.0%, Nickel (Ni): 6.0-8.0%. Molybdenum (Mo): 3.0-5.0%, Manganese (Mn): ≤2.0%, Silicon (Si): ≤1.0%, Carbon (C): ≤0.03%, Nitrogen (N): 0.08-0.20%, Phosphorus (P): ≤0.035%, Sulfur (S): ≤0.020%.

WNR.1.4410 material Mechanical Properties

The minimum tensile strength is 800 MPa, the minimum yield strength is 550 MPa, and the elongation is ≥25%. It maintains good mechanical stability at both low and high temperatures (operating temperature range: -50℃ to 300℃), and is not easy to deform under heavy load conditions.

uns s32750 steel pipe Weldability and Processability

Common welding methods such as TIG welding and MIG welding can be used. After welding, the weld joint still maintains excellent corrosion resistance and mechanical properties without obvious performance degradation. At the same time, it can be processed by bending, cutting and other processes to meet different installation requirements.

super duplex 2507 tubing Abrasion Resistance

The duplex structure (austenite + ferrite) of stainless steel 2507 pipe gives it good abrasion resistance, which can resist the wear of solid particles in the medium, and is suitable for conveying media containing suspended solids.

astm a789 s32750 pipe Size Range

Outer diameter: 6 mm - 1219 mm. Wall thickness: 0.8 mm - 100 mm. Length: 3 m - 12 m (customizable according to user requirements).

ss2507 steel Pipe Types

It is divided into seamless pipe and welded pipe. Seamless pipe is suitable for high-pressure and high-corrosion environments, welded pipe has the advantages of low cost and large output, and is suitable for general industrial occasions.
