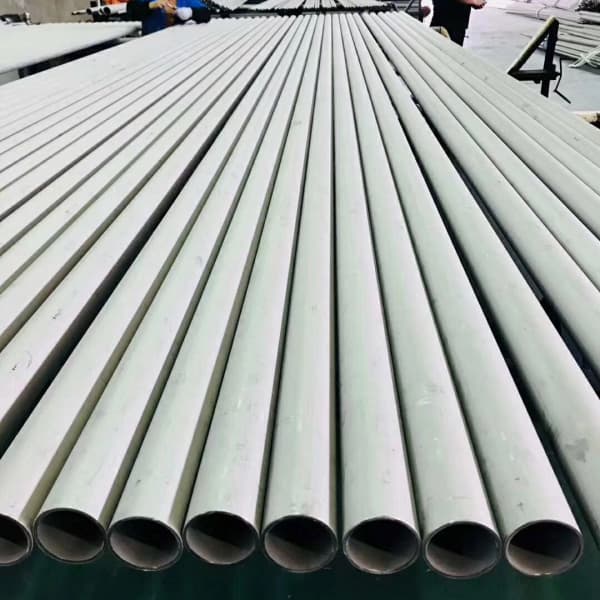

Hastelloy N10665 Alloy Pipe

Hastelloy N10665 alloy pipe is optimized for extreme reducing corrosion environments, making it a critical component in chemical, petroleum, and environmental engineering industries. As a professional exporter of Hastelloy N10665 pipe, we supply astm b622 uns n10665 seamless and welded pipe types that comply with international standards, meeting the strict requirements of industrial applications worldwide.

Hastelloy Alloy B2 UNS N10665 standard



• ASTM B622 Standard Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube



• ASTM B474 Standard Specification for Electric Fusion Welded Nickel and Nickel Alloy Pipe



• ASTM B619 Standard Specification for Welded Nickel and Nickel-Cobalt Alloy Pipe



Hastelloy N10665 Pipe Chemical Composition

• Nickel (Ni): 65% - 70% (balance)
• Molybdenum (Mo): 26% - 30%
• Iron (Fe): ≤ 2.0%
• Chromium (Cr): ≤ 1.0%
• Carbon (C): ≤ 0.02%
• Manganese (Mn): ≤ 1.0%
• Silicon (Si): ≤ 0.1%
• Cobalt (Co): ≤ 1.0%
• Phosphorus (P): ≤ 0.04%
• Sulfur (S): ≤ 0.03%



alloy b2 Seamless welded pipe Dimensional Specifications

• Pipe type: Seamless pipe, welded pipe
• Outside diameter (OD): 6 mm - 914.4 mm
• Wall thickness: SCH 5 - SCH XXS, 1 mm - 45 mm
• Length: Customizable, including fixed length (6m, 12m) and random length
• End finish: Plain end, beveled end, threaded end (TBE/UBE)
• Dimensional standard: ANSI/ASME B36.10M, ANSI/ASME B36.19M



alloy n10665 material Physical Properties

• Density: 9.2 g/cm³
• Melting range: 1330°C - 1380°C (2430°F - 2520°F)
• Thermal expansion coefficient (20°C - 1000°C): 13×10⁻⁶/°C
• Elastic modulus (room temperature): 200 GPa (29.0×10⁶ psi)
• Thermal conductivity (room temperature): 17.3 W/(m·K)



hastelloy b2 Mechanical Properties (ASTM B622 Standard)

• Tensile strength (min): 760 MPa (110 ksi)
• Yield strength (0.2% offset, min): 350 MPa (51 ksi)
• Elongation (min): 40%
• At 300°C, retains over 80% of room temperature tensile strength



Hastelloy N10665 Pipe Corrosion Resistance

• Hydrochloric acid resistance: Corrosion rate < 0.025 mm/year in boiling 37% concentrated hydrochloric acid (100°C), suitable for all concentrations and temperatures under normal pressure.



• Sulfuric acid resistance: Stable performance in ≤70% concentration sulfuric acid at ≤80°C, and ≤50% concentration at 150°C.



• Phosphoric acid resistance: Excellent corrosion resistance in phosphoric acid of any concentration at temperatures up to boiling point.



• Sulfide stress corrosion resistance: Resists sulfide stress corrosion cracking (SSCC) in H₂S-containing acidic oil and gas environments.



• Organic acid resistance: Withstands corrosion from acetic acid, formic acid, and bromic acid at high temperatures.
