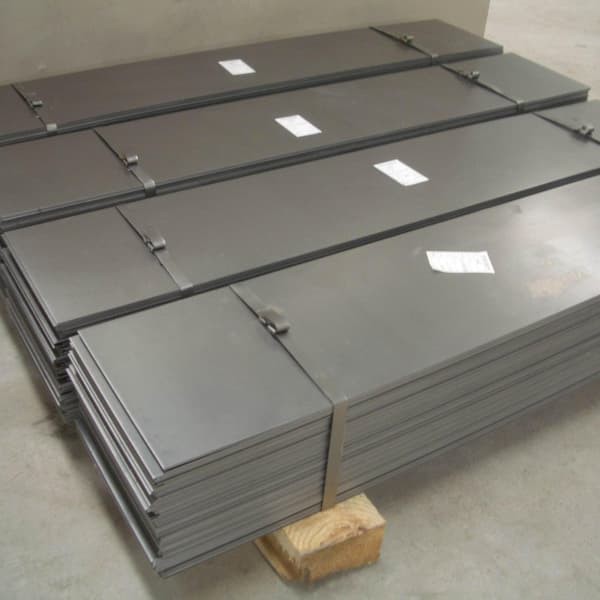

Alloy 201 Plate

1. Material grade: ASTM B162, ASME SB 162
2. Width: 1000~2500mm or as per your requirements
3. Length: 0~12m or as per your requirements
4. Thickness: 0.5~ 50mm or as per your requirements

Send Inquiry

Product Introduction

HT PIPE is a SS 316L Pipe supplier with 15+ export experience. Contact us for more information and quotes for free!

Alloy 201 plate exhibits a distinct combination of physical and mechanical properties that make it a premier choice for severe industrial environments. When Nickel 200 is exposed to temperatures between 800°F and 1200°F (427°C to 649°C) for prolonged periods, the excess carbon precipitates out of the solid solution. It accumulates along the material's grain boundaries as graphite-a destructive microstructural phenomenon known as graphitization.

Product Forms

Bar & Rod

Plate & Sheet

Coil & Strip

Pipe & Tube

Fitting: Flange, Tee, Elbow, Reducer etc.

Forging: Ring, Shaft, Circle, Block etc.

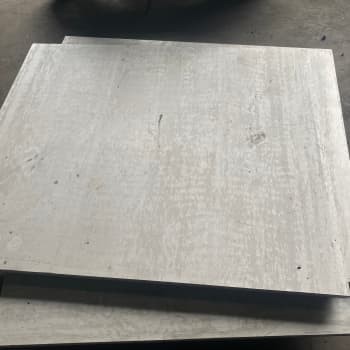

Nickel Alloy 201 Plate Low-Carbon High-Temp Properties

The Core Difference: Nickel 200 vs. 201

Nickel 200: High carbon (≤0.15%). Above 600°F (315°C), carbon turns into graphite along the grain boundaries, making the metal brittle and prone to cracking (graphitization).

Nickel 201: Low carbon (≤0.02%). This low-carbon design prevents graphitization, allowing the metal to safely operate at continuous temperatures up to 1250°F (677°C).

Key Benefits

Caustic Resistance: Unmatched resistance to highly corrosive alkalis like boiling sodium hydroxide (caustic soda).

Thermal Conductivity: Far superior to stainless steel, allowing rapid, uniform heat transfer.

No Stress Cracking: Structurally immune to chloride-induced stress corrosion cracking (SCC).

Quick Reference Data

Property	Value
Max Continuous Temp	1250°F (677°C)
Tensile Strength	58,500 psi (403 MPa)
Standard Specs	ASTM B162 / ASME SB-162

Primary Uses

Chloralkali Processing: Evaporators, reactors, and vessels handling caustic soda.

Synthetic Fibers & Food: Processing equipment where product purity is mandatory and zero metal leaching is allowed.

Fluorine & Chlorine Gas: Handling dry halogen gases at high temperatures.

Fabrication Warning

Keep it Clean: Pure nickel is highly sensitive to sulfur, phosphorus, and lead. Any grease, oil, or marking ink left on the plate during welding will cause the metal to crack (hot-cracking). Clean the surface thoroughly before heating.
