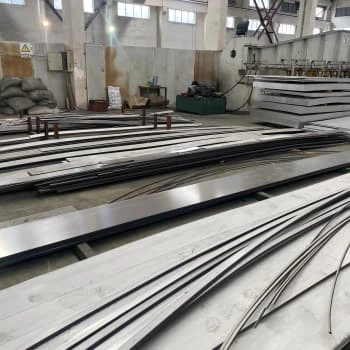

NIckel Alloy 201 Plate

1. Material grade: ASTM B162, ASME SB 162
2. Width: 1000~2500mm or as per your requirements
3. Length: 0~12m or as per your requirements
4. Thickness: 0.5~ 50mm or as per your requirements

Send Inquiry

Product Introduction

Nickel 201 (UNS N02201), a member of the nickel-based alloy family, has an irreplaceable position in high temperature and harsh environments due to its unique properties. The reliable performance of this nickel-based alloy in extreme environments makes it a material link between traditional manufacturing and high-end equipment. HT PIPE is a ASTM B162 Alloy 201 plate supplier with 15+ export experience. Contact us for more information and quotes for free!

Chemical composition of Alloy 201 plate

The nickel content is not less than 99.0%. By controlling the carbon content below 0.02%, the risk of carbide precipitation in high temperature environments is effectively avoided. The precise ratio of trace components such as iron (≤0.40%) and manganese (≤0.35%) in auxiliary elements not only maintains the purity of the material, but also optimizes the processing performance.

Physical performance of Nickel alloy 201 plate

The alloy 201 has a density of 8.89 g/cm³, a melting point spanning the range of 1435-1446℃, and excellent thermal stability. The unique combination of thermal conductivity of 62 W/(m·K) and resistivity of 0.096 μΩ·m makes it perform well in scenarios where heat transfer and electrical conductivity coexist.

mechanical performance of Nickel N02201 plate

The tensile strength in the annealed state is about 380 MPa, and the elongation can reach 40%. This balance of high strength and high plasticity gives the material good forming potential.

Nickel 201 plate Application

Off-Shore Oil Drilling Companies
Power Generation
Gas Processing
Petrochemicals
Pharmaceutical Equipment
Specialty Chemicals
Chemical Equipment
Pharmaceuticals
Pulp & Paper Industry

ASTM B162 Ni 201 Sheet Specification

Grade and Specification	ASTM B162 / ASME SB162 / AMS 5553
Different Thickness	0.1 - 12 mm Thk
Various Surface	2D, Cold rolled sheet (CR), 2B, BA NO(8), SATIN, Hot rolled plates (HR)
Hardness	Half Hard, Quarter Hard,Spring Hard, Hard, Soft etc
Stock Sizes	1000 mm x 2000 mm, 1500 mm x 3000, 2000 mm x 4000 mm, 1220 mm x 2440 mm, 2000 mm x 2000 mm mm
Supply in Form	Rolls, Foils, Flats, Coils, Ring (Flange), Strip, Shim Sheet, Blank (Circle), Plain Sheet

Contact now

Nickel 2.4068 Plate Equivalent

STANDARD	WNR Material Number	UNS	JIS	BS	GOST	AFNOR	EN
201	2.4068 / 2.4061	N02201	NW 2201	NA 12	НП-2	–	LC-Ni 99

Corrosion resistance of Ni N02201 sheet

First, in reducing media, its surface passivation film can effectively resist the erosion of strong acids such as hydrochloric acid and sulfuric acid. secondly, in the face of strong alkaline environments such as sodium hydroxide, it remains stable even when the concentration reaches 50% and the temperature rises to the boiling point, more importantly, in molten salt and dry halogen media, its corrosion resistance far exceeds that of ordinary stainless steel.

Cold rolling of Alloy N02201 sheet

During cold processing, it is recommended to control the deformation amount of each pass within 15%, and the intermediate annealing temperature is preferably 700-850℃.

welded of nickel 2.4068 plate

Tungsten inert gas welding (GTAW) is preferred for welding, and the purity of the shielding gas must reach 99.998%. Rapid cooling after welding can avoid excessive grain growth.

Heat treatment of alloy 2.4061 plate

Annealing treatment should be kept in the range of 760-925℃ and then quenched in water. When the treatment temperature exceeds 540℃, the sulfur content in the furnace should be controlled below 50ppm to prevent sulfur embrittlement.
