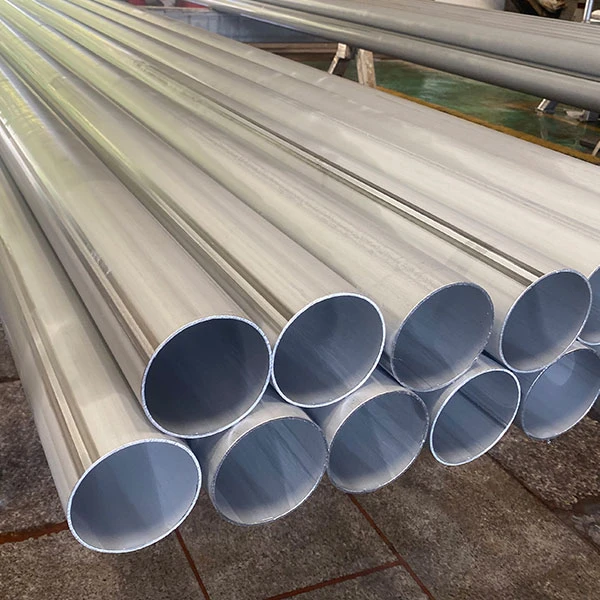

317L Stainless Steel Tube

1. Standard: ASTM A213 / ASME SA213、ASTM A269 / ASME SA269
2. OD: 3.00 - 219.10 mm
3. Thickness: 0.40 - 12.70 mm
4. Length: up to 26 Meters

Send Inquiry

Product Introduction

317L Stainless Steel Tube is similar in composition to 316L and is an austenitic molybdenum, chromium, nickel stainless steel alloy. Due to the higher molybdenum content, S31703 material has enhanced resistance to pitting and stress corrosion cracking, especially in chloride-rich environments. SS 317L has higher creep strength, rupture stress, and tensile strength than 316L stainless steel tube and is widely used in applications such as offshore and pulp and paper mills. Our company is a 317L supplier with 15+ export experience, contact us for more information and quotation for free!

ASTM A213 TP317L stainless steel tube standard：

ASTM A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

ASTM A269: Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service

Grade: TP304, TP304L, TP316, TP316L, 316Ti, TP317, TP317L, TP321, TP310S , TP347, S31254, N08367, N08904 etc.

ASTM A213 TP317L Stainless Steel Tube Specifications

SS TP 317L Seamless Tubing
Size	1/2" OD - 12" OD
OD	3.00 - 219.10 mm
Thickness	0.40 - 12.70 mm
Length	Single, Double Random & Cut Length
SUS 317L Welded Tubing
Size	1/2" - 12" OD, Guage: 25 SWG - 10 SWG
OD	6.35 to 114.3 mm O.D
Thickness	0.8 - 12.7 mm
Length	up to 26 Meters

Dimensional Tolerances

OD	OD Tolerance	Wall Tolerance
≤ .500"	± .005"	± 10%
.500"–1.5" excl	± .005"	± 10%

Stainless Steel 317L Tube Physical Properties

Specific Heat (0-100Â°C)	Thermal Conductivity	Thermal Expansion	Modulus Elasticity	Electrical Resistivity	Density
500	14.6	16.5	193	7.4	7.99
J.kg-1.°K-1	W.m -1.°K-1	mm/m/°C	GPa	Î¼ohm/cm	g/cm3

How To Choose Stainless Steel Tube?

Our htpipe supplier manufacturer can provide both SS317L seamless and welded types.
Seamless process: round steel re-inspection, peeling, cutting, centering, heating, perforation, inspection, pickling, extrusion, lubrication, cold drawing/cold rolling, degreasing, solution treatment, straightening, pipe cutting, pickling and passivation, marking, packaging.
Contact us for more information and free quotes!

FAQ

Q: About 317L Stainless Steel Tube price per kg?

A: Prices range from $8 to $16 per kg, vary depending on size, wall thickness, supplier etc.

Q: How long does your delivery time take?

A: Delivery time is within 5-21 days

Q: Is There Sample Service?

A: Samples Are Provided Free Of Charge

Q: What Is The Minimum Order Quantity?

A: No Minimum Order Quantity

Q: How to pack the products?

A: The inner layer has a waterproof paper outer layer and is fixed with a fumigation wooden pallet.

Q: Exported Countries

A: Brazil, South Africa, Indonesia, India, Singapore, Malaysia, Iran, Russia, UAE, Chile, Laos, etc
