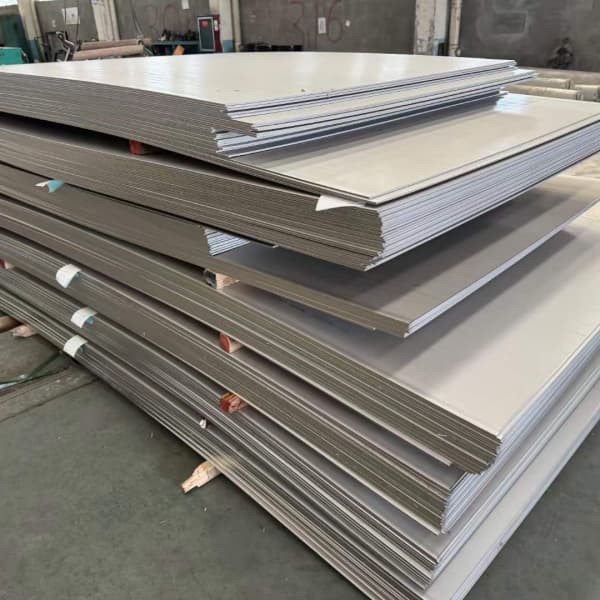

Ss317L Plate

1.Standard: ASTM A240、ASME SA 240
2.Thickness: 0.1 to 100 mm
3.Width: 1000 - 3300mm
4.Length: 1000 - 12000mm

Send Inquiry

Product Introduction

The "L" in ss317L denotes low carbon content (0.030%). This structural feature prevents chromium carbide precipitation during welding. Consequently, the metal retains its full corrosion resistance along welded joints without requiring post-weld annealing. HT PIPE is a en 1.4438 aisi 317l plate supplier with 15+ export experience. Contact us for more information and quotes for free!

We offers ss317l in a variety of forms, including:

Bar
Wire
Sheet
Plate
Forgings
Pipe fittings
Flanges
Seamless & Welded pipe
Seamless Tube & Welded tube
Weld Rod

Specification Chart Of Stainless Steel 317L Plate

Standard Specifications	ASME SA240/ ASTM A240
Thickness Available	4mm - 100mm
Stock Length	2000mm, 2440mm, 6000mm, 5800mm, 3000mm etc
Mechanical Surface Finishing	etching, NO.1, hair line, Brush, embossed, 2D, 2B, NO.8, BA, 8K, checkered, NO.4, mirror, sand blast etc
Width We manufacture	3000mm, 1500mm, 2500mm, 2000mm, 3500mm, 1219mm, 1000mm, 1800mm etc
Provide Plate Finish	2B, BA NO(8),Hot rolled plate (HR), SATIN (Met with Plastic Coated), Cold rolled sheet (CR), 2D
Plate form accessible	Foils, Plain Sheet, Flats, Coils, Shim Sheet, Rolls, Chequered Plate, Strip, Perforated Sheet, Blank (Circle),Ring (Flange) etc.

Contact now

ASTM A240 UNS S31703 Plate Sheet strip Chemical Composition

Grade	Ni	Cr	Mo	Mn	Si	C	N	S	P	Fe
1.4438 Stainless Steel	11.0 – 15.0	18.0 – 20.0	3.0 – 4.0	2.0 Max	.75 Max	0.03 Max	0.1 Max	0.03 Max	0.045 Max	Balance

Machining and Cold Forming

Due to its high alloy content, 317L work-hardens rapidly. Fabricators should use heavy, constant feeds, rigid setups, and high-quality sulfurized lubricants. Slow speeds and sharp tooling help prevent the material from glazing.

Welding Practices

317L is highly weldable using standard fusion methods (such as TIG and MIG); however, oxyacetylene welding must be avoided to prevent carbon pickup. To maintain optimal corrosion resistance across the weld zone, engineers specify over-alloyed filler metals like AWS E317L or ER317L.

Thermal Treatment

While 317L cannot be hardened via heat treatment, internal stresses from heavy forming can be relieved through solution annealing at 1850°F to 2050°F (1010°C to 1121°C), followed by a rapid water quench.

Typical Applications

Chemical and Petrochemical: Acetic, sulfuric, and phosphoric acid plants, cracked gas quenching systems in ethylene plants and organic synthesis processes containing chlorides.

Marine Engineering and Seawater Desalination: Seawater cooling piping systems, preheaters, pumps, and piping in seawater desalination plants; and high-pressure seawater systems on ships.

Flue Gas Desulfurization (FGD) Systems: Wet areas most susceptible to corrosion, such as the absorber spray layer, demister, and outlet flue.

Paper Industry: Equipment and piping in the pulp bleaching process (ClO₂ environment).

Pharmaceutical and Food Industries: Demanding process steps requiring extreme cleanliness and corrosion resistance.

Environmental Protection: Wastewater treatment, particularly for industrial wastewater containing high levels of chlorides, sulfides, or acidic components.
