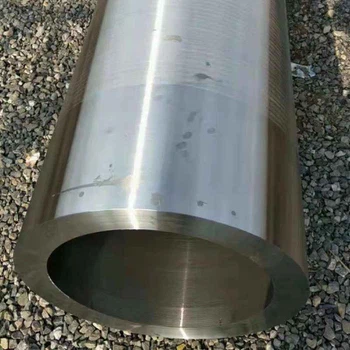

SCH 40 Inconel 625 Grade 2 Pipe
1. Standard: ASTM B444, ASME SB444, ASTM B474, ASME SB474
2. Diameters: 5.0 mm – 1219.2 mm
3. Wall thickness: 0.5 - 20mm
4. Length: Single Random, Double Random & Cut Length.
Inconel 625 Grade 2 Pipe is supplied in the solution annealed condition. The main difference between Grade 2 and Grade 1 is the annealing temperature. The minimum annealing temperature for Grade 1 is 1600F (871 degrees Celsius), while Grade 2 is now 2000F (1093 degrees Celsius). Schedule 40 (SCH 40) is suitable for medium pressure applications without sacrificing strength or flexibility. Contact us for more information and a free quote!
ASTM B444 Inconel 625 Grade 2 Pipe Applications:
- Aerospace and jet engines
- Exhaust systems
- Marine and offshore
- Chemical processing and refineries
- Nuclear and power generation
Nickel Inconel 625 Tube Specification
| ASTM/ ASME |
|
| Shapes | Round, Rectangular, Square, Hydraulic, Straight, "U" Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
Inconel Alloy 625 Material Composition:
- Nickel (Ni): at least 58%
- Chromium (Cr): 20-23%
- Molybdenum (Mo): 8-10%
- Niobium (Nb): 3.15-4.15% (for enhanced high temperature strength)
- Other elements: Iron, Manganese, Silicon, Carbon
Alloy N06625 PIPE Corrosion Resistance:
- Pitting and crevice corrosion
- Oxidation and scaling resistance
- Stress corrosion cracking (SCC)
ASTM B444 Inconel 625 Mechanical Properties:
- Yield strength: Approximately 414 MPa (60,000 psi) at room temperature.
- Tensile strength: Approximately 827 MPa (120,000 psi) at room temperature.
- Elongation: Approximately 30%.
High Temperature Resistance:
Cryogenic to high temperature performance: 2.4856 Inconel 625 maintains its mechanical strength over a wide temperature range from cryogenic to over 982°C (1800°F).
FAQ
Q: About Inconel 625 Grade 2 Pipe prices per kg?
Q: How long does your delivery time take?
Q: Is There Sample Service?
Q: What Is The Minimum Order Quantity?
Q: How to pack the products?
Q: Exported Countries
