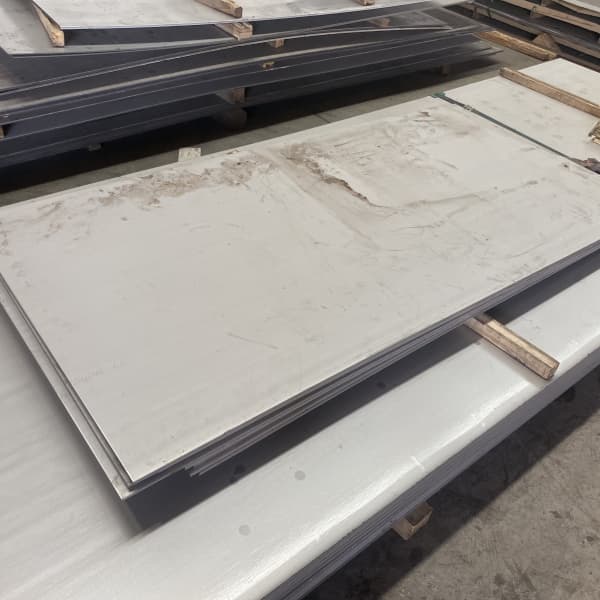

Grade 904L Plate
1. Standard: ASTM A240 / ASME SA240
2. Thickness: 0.3~100mm or as required
3. Width: 1000~2500mm or as required
4. Length: 0~12m or as required
The baseline resilience of grade 904L (UNS N08904 / 1.4539) lies in its unique elemental configuration. Standard stainless steels depend heavily on their chromium-induced passive oxide layer. However, under high-velocity flow or strong reducing conditions, this layer strips away, inducing catastrophic pitting or structural failure. HT PIPE is a 904l stainless steel Pipe supplier with 15+ export experience. Contact us for more information and quotes for free!
Product Forms
Bar & Rod
Plate & Sheet
Coil & Strip
Pipe & Tube
Fitting: Flange, Tee, Elbow, Reducer etc.
Forging: Ring, Shaft, Circle, Block etc.
Chemical Composition Profile (ASTM B625 / A240)
| Element | Weight Percentage (%) | Operational Purpose |
| Nickel (Ni) | 23.00 – 28.00 | Virtually eliminates chloride stress corrosion cracking (SCC). |
| Chromium (Cr) | 19.00 – 23.00 | Provides primary passivity and baseline oxidation resistance. |
| Molybdenum (Mo) | 4.00 – 5.00 | Drives up the Pitting Resistance Equivalent Number (PREN). |
| Copper (Cu) | 1.00 – 2.00 | Insulates the matrix against aggressive reducing acid attack. |
| Carbon (C) | 0.020 Max | Ultra-low limit prevents harmful carbide precipitation during welding. |
Pitting Resistance Landscape
The Baseline Conflict: Standard 316L delivers a PREN of roughly 23 to 25. In warm, oxygen-depleted brackish water or marine splash zones, 316L suffers localized crevice attack within weeks.
The 904L Safeguard: With a minimum of 4% molybdenum, 904L cold rolled sheet creates a highly stable surface film that resists chloride-ion penetration. This makes it an ideal middle-tier choice between standard austenitics and highly premium 6% Mo super-austenitics or duplex grades.
Critical Metallurgy Warning: High-Temperature Limitations
While 904L provides excellent oxidation resistance, its microstructure is prone to phase instability when exposed to sustained temperatures above 400°C (752°F). Extended operation in this thermal band risks the precipitation of brittle intermetallic phases (such as sigma phase), which dramatically lowers both impact toughness and corrosion resistance. Keep operational applications well within the certified sub-400°C limits.
Welding Mechanics: Because 904L solidifies into a fully austenitic structure, it is inherently more susceptible to hot cracking than standard grades that retain a trace percentage of delta ferrite.
- Avoid any pre-heating or post-weld thermal treatments.
- Keep heat input low to preserve structural integrity, and match the base material with over-alloyed consumables (such as E385 or ER385) to offset alloy segregation in the weld pool.
Work Hardening Behavior: The high nickel and manganese content means 904L sheet work-hardens rapidly. When machining or blanking, use rigid setups, heavy constant feeds, and sharp tooling to cut below the work-hardened zone left by preceding passes.
Technical Delivery Standards
When sourcing premium materials, ensure the mill test certificates (MTC) explicitly conform to the required international testing metrics:
ASTM A240 / ASME SA240: Standard specification for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and general applications.
ASTM B625 / ASME SB625: Standard specification for UNS N08904 plate, sheet, and strip.
EN 10088-2: European standard mapping technical delivery conditions for corrosion-resisting sheets and strips.
FAQ
Q: About grade 904l plate price per kg?
A: Prices ranges from $2 to $10 per kg, vary depending on size, wall thickness, supplier etc.
Q: How long does your delivery time take?
A: Delivery time is within 5-21 days
Q: Is There Sample Service?
A: Samples Are Provided Free Of Charge
Q: What Is The Minimum Order Quantity?
A: No Minimum Order Quantity
Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer and is fixed with a fumigation wooden pallet.
Q: Exported Countries
A: Brazil, South Africa, Indonesia, India, Singapore, Malaysia, Iran, Russia, UAE, Chile, Laos, etc
