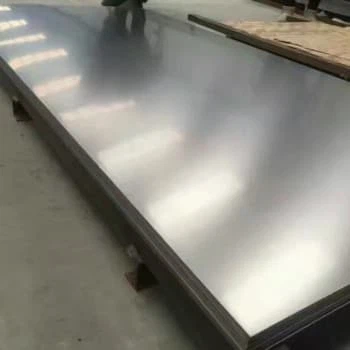

ASTM B435 Hastelloy N06002 Plate

1. ASTM B435, ASME SB 435
2. Length: 0-12m
3. Width: 0-2500mm
4. Thickness: 0.3-120mm
5. Process: Hot rolled, cold rolled
6. Grades:Hastelloy x, alloy x,2.4665, UNS N06002

Send Inquiry

Product Introduction

Hastelloy X (UNS N06002) is a high-temperature alloy based on nickel. Through solid solution strengthening of elements such as chromium, molybdenum, and cobalt, it exhibits excellent high-temperature strength, oxidation resistance, and corrosion resistance. Hastelloy X Plate is widely used in high-temperature and high-pressure environments such as aviation, energy, and chemical industry. HT PIPE is a Hastelloy X Plate supplier with 15+ export experience. Contact us for more information and quotes for free!

alloy N06002 Chemical composition

The chemical composition design of Hastelloy X is based on nickel (Ni), supplemented by key elements such as chromium (Cr 20.5-23.5%), molybdenum (Mo 8.0-10.0%), iron (Fe 17-20%), cobalt (Co 0.5-2.5%), and tungsten (W 0.2-1.0%).

Mechanical Properties of Hastelloy X Sheet & Plates

Properties	Metric	Imperial
Tensile strength	755 MPa	109.5 Ksi
Yield strength	385 MPa	55.9 Ksi
Elastic modulus	205 GPa	29.8 psi
Reduction of area	22%	22%
Hardness, Rockwell B (converted from Brinell hardness)	87	87

Hastelloy X Plates Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Hastelloy X	2.4665	N06002

2.4665 Hastelloy X Oxidation resistance

High chromium content forms a dense oxide film at high temperature to resist the erosion of oxidizing gases (such as oxygen and carbon dioxide), and the maximum temperature resistance is 1200℃.

ASME SB435 Alloy X Specifications

Specifications	ASTM B435 / ASME SB435
Standard	ASTM, ASME and API
Specialize	Shim Sheet, Perforated Sheet, B. Q. Profile.
Size	0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Grade	Hastelloy X (UNS N06002)

Contact now

Alloy X Corrosion resistance

Molybdenum and tungsten enhance the resistance to pitting and crevice corrosion in reducing acid and chloride environments, and are suitable for corrosive media such as sulfur-containing and acidic gases.

Hastelloy N06002 High temperature strength

It has medium endurance strength and creep resistance below 900℃, and the short-term use temperature can reach 1080℃.

Application of alloy X plate

Oil and gas: submarine pipelines, downhole tools for acid gas wells

Chemical equipment: sulfuric acid reactors, phosphoric acid evaporators, pickling equipment

Nuclear industry: containers and pipelines for nuclear waste treatment systems

Marine engineering: seawater desalination devices, heat exchangers

Environmental protection: key components of flue gas desulfurization (FGD) systems.

Hot working of N06002 X Plate

The hot rolling temperature range is 1150-1170℃, and the final rolling temperature is not less than 850℃ to avoid grain coarsening affecting performance.After forging, solid solution treatment (1175℃±15℃ water quenching or rapid air cooling) is required to eliminate stress and optimize creep resistance.

Cold working of Hastelloy 2.4665 Plate

It needs to be carried out in the solid solution state, and the work hardening rate is higher than that of ordinary stainless steel. Intermediate annealing treatment is required when the deformation exceeds 10%.

Welding of Nickel alloy X

It is recommended to use low heat input TIG welding or plasma arc welding, and the interlayer temperature is controlled below 100℃. The weld area needs to be polished to a bright surface before welding, and no post-weld heat treatment is required.
